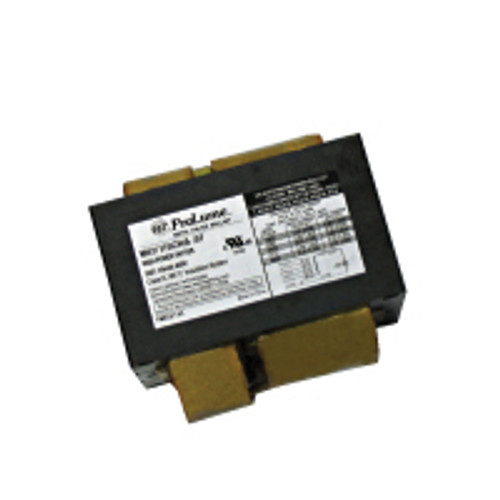

Halco Lighting Technologies M58/250CWA/5T/K 55146 250W MH M58/H37 5T Kit

Halco Product Specifications:
ANSI Code 1: M58
Applications: Roadway, Parking lot, Retail, Security, Street, Wall Wash
Ballast Type: Standard Metal Halide
Brand: ProLume
CSA: N
Capacitance (mfd): 15
Capacitor - Minimum Voltage: 400
Capacitor Diameter (In): 1.88
Capacitor Height (In): 2.75
Capacitor Included: Y
Case Height: 4.25
Case Length (In): 4.75
Case Width (In): 1.85
Circle E: Y
Circuit Type: CWA
Dimmable: N
ETL: N
Fuse Rating-120V (Amps): 10
Fuse Rating-208V (Amps): 6
Fuse Rating-240V (Amps): 5
Fuse Rating-277V (Amps): 5
Fuse Rating-480V (Amps): 3
HTS code: 8504100000
Included-mounting bracket: Y
Inner UPC: 807154551460
Input Frequency (Hz): 60
Input Short Circuit Current-120V (Amps): 0.9-2.7
Input Short Circuit Current-208V (Amps): 0.5-1.5
Input Short Circuit Current-240V (Amps): 0.4-1.2
Input Short Circuit Current-277V (Amps): 0.4-1.2
Input Short Circuit Current-480V (Amps): 0.2-0.6
Input Volts (V): 120/208/240/277/480
Insulation System: Class N, 200?C
Lamp Type: HID Ballast
Lamp Wattage: 250
Lead Length - HID: 12
Markets: Commercial, Industrial
Maximum Case Temperature (F): 90
Minimum Start Temperature (F / C): -22 / -30
Nominal Open Circuit Volts: 307
Number of Lamps: 1
Open Circuit Current- 120V (Amps): 2.9
Open Circuit Current- 208V (Amps): 1.7
Open Circuit Current- 240V (Amps): 1.6
Open Circuit Current- 277V (Amps): 1.2
Open Circuit Current- 480V (Amps): 0.8
Operating Current-120V (Amps): 2.5
Operating Current-208V (Amps): 1.45
Operating Current-240V (Amps): 1.25
Operating Current-277V (Amps): 1.5
Operating Current-480V (Amps): 0.65
Primary Lamp: MH250
Product Code: M58/250CWA/5T/K
Product Description: 250W MH M58/H37 5T KIT
Product Number: 55146
RoHS Compliant: Y
SS BUY PKG: 1
Secondary Short Circuit Current - 120V (Amps): 2.1-3.5
Secondary Short Circuit Current - 208V (Amps): 2.1-3.5
Secondary Short Circuit Current - 240V (Amps): 2.1-3.5
Secondary Short Circuit Current - 277V (Amps): 2.1-3.5
Secondary Short Circuit Current - 480V (Amps): 2.1-3.5
Specification Sheet:
Start Type: Standard
Starting Current - 120V (Amps): 1.5
Starting Current - 208V (Amps): 0.9
Starting Current - 240V (Amps): 0.7
Starting Current - 277V (Amps): 0.6
Starting Current - 480V (Amps): 0.4
TITLE20 Y/N: Y
UL: Y
UL Bench Top Rise Code: A/A/A/A/A
UNSPSC: 39101902
Warning 1: Install in accordance with National Electrical Code
Warning 2: Ground Ballast Core and Metallic Capacitor Case
Warranty (Yrs): 2
Wattage (W): 289
Weight (lbs): 12.6
Weight - Total Kit (lbs): 12.6
cUL: Y
