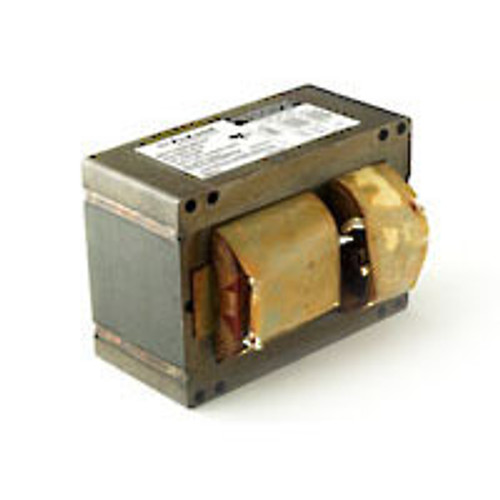

Halco Lighting Technologies M102/150HX/4T/K 55138 150W MH M102 4T Ps Kit

$108.63
(No reviews yet) Write a Review
SKU:
M102/150HX/4T/K
Weight:
0.00 LBS
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
Halco Product Specifications:
ANSI Code 1: M102
Applications: Roadway, Parking lot, Retail, Security, Street, Wall Wash
Ballast Type: Pulse Start Metal Halide
Brand: ProLume
CSA: N
Capacitance (mfd): 16
Capacitor - Minimum Voltage: 280
Capacitor Diameter (In): 1.38
Capacitor Height (In): 3.08
Capacitor Included: Y
Case Height: 2.81
Case Length (In): 3.94
Case Width (In): 2.28
Circle E: Y
Circuit Type: HX-HPF
Dimmable: N
ETL: N
Fuse Rating-120V (Amps): 10
Fuse Rating-208V (Amps): 5
Fuse Rating-240V (Amps): 5
Fuse Rating-277V (Amps): 4
HTS code: 8504100000
Ignitor: IGN/MH1
Ignitor Included: Y
Included-mounting bracket: Y
Inner UPC: 807154551385
Input Frequency (Hz): 60
Input Short Circuit Current-120V (Amps): 0.9-2.7
Input Short Circuit Current-208V (Amps): 0.5-1.5
Input Short Circuit Current-240V (Amps): 0.4-1.2
Input Short Circuit Current-277V (Amps): 0.4-1.2
Input Volts (V): 120/208/240/277
Insulation System: Class N, 200?C
Lamp Type: HID Ballast
Lamp Wattage: 150
Lead Length - HID: 12
Markets: Commercial, Industrial
Maximum Case Temperature (F): 100
Minimum Start Temperature (F / C): -22 / -30
Nominal Open Circuit Volts: 255
Number of Lamps: 1
Open Circuit Current- 120V (Amps): 3.4
Open Circuit Current- 208V (Amps): 2.0
Open Circuit Current- 240V (Amps): 1.7
Open Circuit Current- 277V (Amps): 1.5
Operating Current-120V (Amps): 1.6
Operating Current-208V (Amps): 1.2
Operating Current-240V (Amps): 1.0
Operating Current-277V (Amps): 0.9
Primary Lamp: MH150
Product Code: M102/150HX/4T/K
Product Description: 150W MH M102 4T PS KIT
Product Number: 55138
RoHS Compliant: Y
SS BUY PKG: 1
Secondary Short Circuit Current - 120V (Amps): 1.8-3.0
Secondary Short Circuit Current - 208V (Amps): 1.8-3.0
Secondary Short Circuit Current - 240V (Amps): 1.8-3.0
Secondary Short Circuit Current - 277V (Amps): 1.8-3.0
Specification Sheet:
Start Type: Pulse Start
Starting Current - 120V (Amps): 1.9
Starting Current - 208V (Amps): 1.2
Starting Current - 240V (Amps): 1.0
Starting Current - 277V (Amps): 0.9
TITLE20 Y/N: Y
UL: Y
UL Bench Top Rise Code: A/A/A/A
UNSPSC: 39101902
Warning 1: Install in accordance with National Electrical Code
Warning 2: Ground Ballast Core and Metallic Capacitor Case
Warranty (Yrs): 2
Wattage (W): 182
Weight (lbs): 8.0
Weight - Total Kit (lbs): 9.064
cUL: Y
