Key Features:

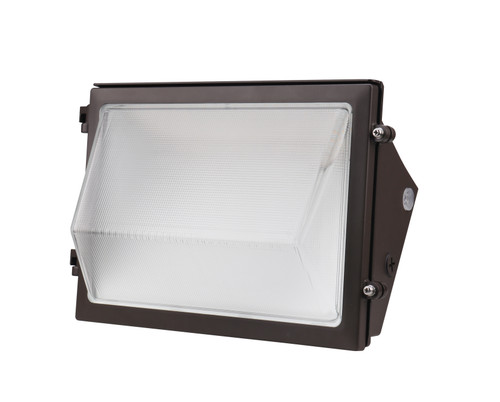

Traditional Style
Matches the appearance of legacy products.
Integrated Photocell
Manage security and safety with the integrated photocell; it can easily be disabled in the field (Photocell not included on 277-480V model).
Installation Made Easy
4 - 1/2in knockouts, hinged door housing, can be mounted with or without junction box.
Highlights:
- Traditional style matches the appearance of legacy products while also covering the same footprint
- 4 - 1/2in knockouts makes for versatile mounting
- Wall mount with or without junction box
- Integrated photocell for dusk to dawn operation
- Hinged removable door housing makes installation easier
- Glass lens
- PowerSet feature allows for multiple lumen stops out of the box
- FieldCCeT features provides multiple color temperature settings in one fixture
Certifications:
- UL Listed for US & Canada
- RoHS compliant
- FCC compliant
- ICES-005 compliant
- IP65 Rated
- IK Pending
- DesignLights Consortium Premium Qualified - meets the requirements for the highest DLC qualification for efficacy and lumen maintenance - Pending
Thermal:
- -40Deg. F to 122Deg. F (-40Deg. C to 50Deg. C) ambient operating temperature
- -13Deg. F to 122Deg. F (-25Deg. C to 50Deg. C) ambient operating temperature with photocell
Construction:
- Bronze powder coated, die-cast aluminum housing
- Glass lens
Applications:
- Industrial Parks
- Loading Docks
- Utility Sheds
- Entryways
- Walkways
- Storage Areas
- Security
- Perimeter Lighting
Specification:
- Voltage: 120-347VAC
- Lumens (lm): 10,800 / 9,450 / 8,100 lm
- Wattage: 80/70/60W
- Efficacy (lm/W): 135 lm/W
- CCT (K): 3000K / 4000K / 5000K
- CRI: 80+
- Dimming: 0-10
- Replacement for: Up to 250W HID
- DLC Version: DLC Premium
- IP Rating: IP65
- Wet/Damp/Dry Location: Wet
- cULus Listed: Yes
- Housing Color: Bronze
- Lens Material New: Glass
- Auxiliary Output: Yes (12V), 100mA
5 Years
