| Voltage | 120-277VAC |
| Lumens (lm) | 45,015 lm |
| Wattage | 320/290/260W |
| Efficacy (lm/W) | 136 lm/W |
| CCT | 4000 |
| CRI | 80+ |
| Dimming | 0-10 |
| Nominal Size | 3 Foot |
| Replacement For/Equivalent | 6 lamp T5 HO or up to 1000W HID |
| DLC Version | DLC Premium |
| T20 Status | Exempt |
| IP Rating | IP20 |
| Wet/Damp/Dry Location | Damp |
| RoHS Compliant | Yes |
| UL | Yes |
| Dimensions (L x W x H) | L: 35 3/8" (900 mm), W: 15 1/8" (383 mm), H: 2 3/16" (56 mm) |
| Housing Color | White |
| Lens Material | Polycarbonate (PC) |
| Operating Temp Range (°F/°C) | -40F to 122F (-40C to 50C) |
| Driver Surge Protection (kV) | L/N-PE: 6kV, L-N: 4kV |
| Auxiliary Output | Yes (12V), 200mA |
| Warranty | 5 Years |
| Brand | Premise |

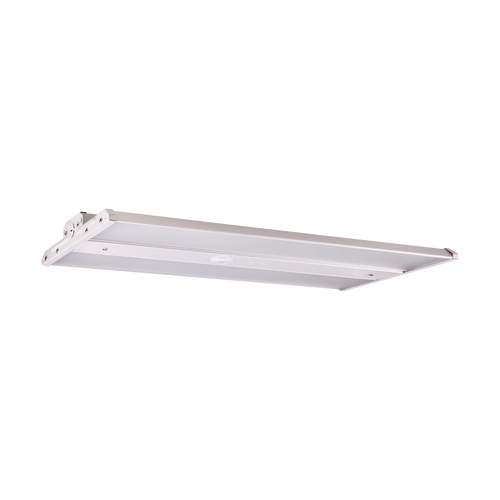

Linear High Bay, 320/290/260W, 4000K, 120-277V, Dimmable | LHB4-320G4-1 | 801492 | EiKO
EiKO
(No reviews yet)
Write a Review
Write a Review
EiKO
Linear High Bay, 320/290/260W, 4000K, 120-277V, Dimmable | LHB4-320G4-1 | 801492 | EiKO
- SKU:
- LHB4-320G4-1
- Availability:
- Usually ships within 1 week
- Weight:
- 18.00 LBS
- Minimum Purchase:
- 1 unit
- Shipping:
- Calculated at Checkout
- Spec Sheet:
- Spec Sheet
- Instruction Sheet:
- Instruction Sheet
- Sell Sheet:
- Sell Sheet
- Lens Material:
- Polycarbonate (PC)
- Lumens:
- 45,015 lm
- Efficacy:
- 136 lm/W
- Max Wattage:
- 320/290/260W
- CCT:
- 4000
- CRI:
- 80+
- Rated Life:
- 50,000
- Beam Angle:
- 90°
- System Wattage:
- 325.8W
- Input Voltage:
- 120-277VAC
- Output Voltage:
- 30-48V
- THD:
- 15%
- Inrush Current:
- <80A
- Dimmable:
- 0-10
- Order Code:
- 801492
