Key Features:
Controls Ready
Easily add controls anytime without the need for additional wiring.
Nema Photocell Optional
Factory installed NEMA 7-pin photocell receptacle paired with 3-pin photocell (on/off ) or 5-pin photocell (dimming) allows for enhanced security and additional energy savings.
Toolless Junction Box
Hinged toolless junction box makes installation and maintenance easier.
Lens Swap Combined / Environmental Protection
IP65, 3G, IK08 rated, powder coated die-cast bronze aluminum housing; impact and UV resistant polycarbonate lens.
Highlights:

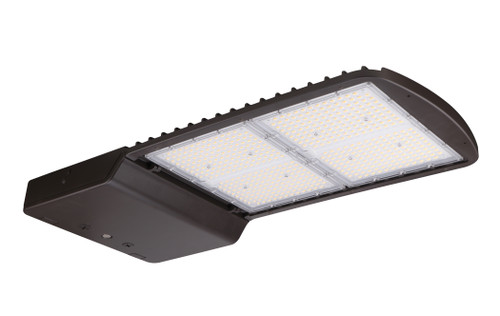

- Architectural thin profile used for area light applications
- Controls Ready makes adding controls quick and easy. Includes screw-in receptacle for Standalone sensors or Networked Lighting Controls
- NEMA 7-pin photocell receptacle available by factory modification
- T3 lens optics
- Multiple mounting options available for versatile use (mounts sold separately)
- Hinged toolless access junction box makes installation and maintenance easier
- Includes pre-installed 3.3ft (1m) power cord
- One: 1/2in side knockout
- PowerSet feature allows for multiple lumen stops out of the box
- FieldCCeT features provides multiple color temperature settings in one fixture
Certifications:
- UL listed for US & Canada
- RoHS Compliant
- FCC Compliant
- ICES-005 Compliant
- IP65 Rated
- IK08
- 3G Rated per ANSI C136.31
- DesignLights Consortium Premium Qualified - meets the requirements for the highest DLC qualification for efficacy and lumen maintenance
Thermal:
- -40Deg. F to 122Deg. F (-40Deg. C to 50Deg. C) ambient operating temperature
- Ambient operating temperature with sensor
Construction:
- Bronze powder coated die-cast aluminum housing
- Impact and UV resistant polycarbonate lens
Applications:
- Parking Areas
- Automotive Dealerships
- Roadways
- Campuses
- Streetscapes
- Airports
- Area security lighting
- Building facades
- Signs
- Entryways
Specification:
- Voltage: 120-277VAC
- Lumens (lm): 63,000/56,000/49,000 lm
- Wattage: 450/400/350W
- Efficacy (lm/W): 140 lm/W
- CCT (K): 4000K
- CRI: 80+
- Dimming: 0-10
- Replacement for: up to 1000-1200W HID
- DLC Version: DLC Premium
- IP Rating: IP65
- Wet/Damp/Dry Location: Wet
- IK Rating: 8
- cULus Listed: Yes
- Dimensions (L x W x H): L: 28 1/8in (715mm), W: 13in (330mm), H: 2 5/16in (74mm)
- Housing Color: Bronze
- Lens Material New: Polycarbonate (PC)
- Ambient Temp Range: -40F to 122F (-40C to 50C)
- Driver Surge Protection (kV) new: L/N-PE: 10kV, L-N: 10kV
- Additional Surge Protection (kV) new: 10kV included, 20kV option
- Auxiliary Output: 12V, 100mA
5 Years
