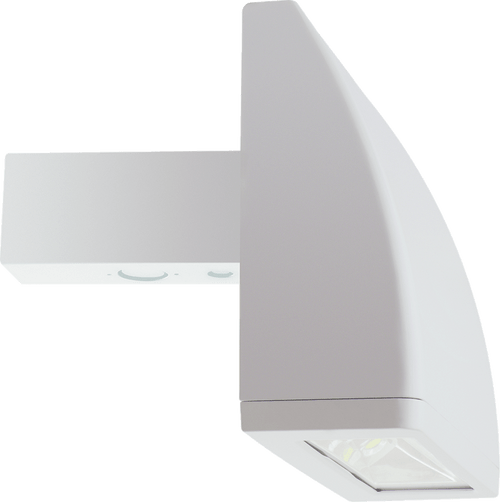

Area Light 104W Warm LED 4 X 26W Bilevel White, 3000K (Warm), 100000 Hour Life, ALED104YW/BL | RAB for 1272.32 at Lightingandsupplies.com

ALED104YW/BL

RAB Lighting

(No reviews yet) Write a Review
SKU:
ALED104YW/BL
UPC:
19813044279
Availability:
Usually ships within 1 week.
Weight:
26.00 LBS
sub-tech:
LED
Color Temperature:
3000K
Color:
White
Spec Sheet:
Spec Sheet
Instructions:
Instructions
Wattage:
104W
Lumens:
10000-20000
Efficacy:
126.6 lm/W
CRI:
71
Rated Hours:
100,000 Hours
Type:
Constant Current
V120:
0.95A
V208:
0.59A
V240:
0.51A
V277:
0.44A
Wattage:
108W
sub-tech:
LED
Color Temperature:
3000K
Color:
White
Spec Sheet:
Spec Sheet
Instructions:
Instructions
Wattage:
104W
Lumens:
10000-20000
Efficacy:
126.6 lm/W
CRI:
71
Rated Hours:
100,000 Hours
Type:
Constant Current
V120:
0.95A
V208:
0.59A
V240:
0.51A
V277:
0.44A
Wattage:
108W
Call for price
Compliance
UL ListedUL Suitable for Wet Locations as Uplight and Downlight
IP RatingIngress protection rating of IP66 for dust and water
DLC ListedThis product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: P000017BK
Construction
Standard MountStandard 15° mount. Die-cast aluminum wall bracket with (5) 1/2" conduit openings with plugs. Two piece bracket with tether for ease of installation and wiring.
Cold Weather StartingThe minimum starting temperature is -40°C (-40°F)
Maximum Ambient TemperatureSuitable for use in up to 40°C (104°F)
HousingPrecision die-cast aluminum housing, lens frame
ArmDie-cast aluminum with wiring access plate
LensTempered glass
ReflectorSpecular vacuum metallized polycarbonate
GasketsHigh-temperature silicone
EPA1 Fixture: 2.02 Fixtures at 90°: 3.52 Fixtures at 180°: 4.03 Fixtures at 90°: 4.54 Fixtures at 90°: 4.5
LED Characteristics
LEDsFour multi-chip, high-output, long-life LEDs
Performance
Lifespan100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage EquivalencyEquivalent to 400W Metal Halide
Electrical
DriverTwo drivers, Constant current, Class 2, 100-277V, 50/60 Hz, 6kV Surge Protection, 700mA, 100-277V
THD5.22% at 120V, 7.4% at 277V
Power Factor99.6% at 120V, 92.4% at 277V
