| Compliance | |
| UL Listed | Suitable for wet locations. Suitable for mounting within 4 ft of the ground. |
| DLC Listed | This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: PWDERZV2 |
| Performance | |
| Lifespan | 50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Wattage Equivalency | Equivalent to 250W Metal Halide |
| LED Characteristics | |
| LEDs | Long-life, high-efficacy, surface-mount LEDs |
| Color Uniformity | RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. |
| Construction | |
| Housing | Die-cast aluminum |
| Lens | Glass |
| Reflector | Specular aluminum |
| Cold Weather Starting | The minimum starting temperature is -40°C (-40°F) |
| Maximum Ambient Temperature | Suitable for use in up to 40°C (104°F) |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Finish | Formulated for high durability and long-lasting color |
| Installation | |
| Mounting | Die-cast backbox with four (4) conduit entry points and knockout pattern for junction box or direct wall mounting. Hinged door for easy re-assembly. |
| Optical | |
| BUG Rating | B2 U3 G2 |
| Electrical | |
| Driver | Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.73A, 208V: 0.42A, 240V: 0.36A, 277V: 0.32A |
| THD | 6.38% at 480V |
| Power Factor | 98.8% at 480V |

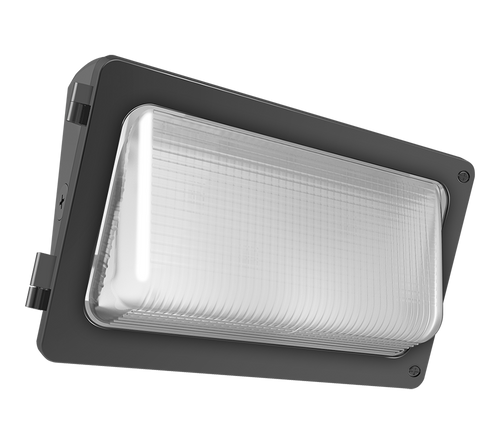

W34-90L/480
RAB Lighting
- SKU:
- W34-90L/480
- UPC:
- 192552000000
- Availability:
- Usually ships within 1 week.
- Weight:
- 10.40 LBS
- voltage:
- 480v
- sub-tech:
- LED
- Kelvin:
- 5000K
- Spec Sheet:
- Spec Sheet
- Instructions:
- Instructions
- Watts:
- 86W
- Color Temp:
- 5000K (Cool)
- Lumens:
- 10,676 lm
- Efficacy:
- 129.2 lm/W
- Color Accuracy:
- 84 CRI
- L70:
- 50,000 Hours
- Type:
- Constant Current
- Input Watts:
- 82.6W
