| Performance | |
| Lifespan | 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Construction | |
| Temperature | -30 ° C/-22 ° F |
| Globes and Guards | Vaporproof LEDs are compatible with RAB Globes and Guards |
| Construction | Die cast aluminum housing and door. Tether connects back housing halves for safety. |
| Cold Weather Starting | The minimum starting temperature is -40°C (-40°F) |
| Ambient Temperature | Suitable for use in up to 35°C (95°F) |
| Housing | Die-cast aluminum housing and driver housing |
| Guard and Globe | Shot blasted guard with frosted globe |
| Reflector | High quality hydroformed semi-specular aluminum |
| Gaskets | High-temperature Silicone |
| Finish | Natural shot blasted aluminum |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Electrical | |
| Driver | Multi-chip single 13W high output long life LED Driver. Constant Current,10-30V DC, 50/60 Hz., 10-30V DC 1.5-0.5A. |
| Surge Protection | 4kV |
| Installation | |
| Mounting | Three 1/2" NPS conduit entry points |
| Compliance | |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80. |
| LED Characteristics | |
| Color Consistency | 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color |
| Color Stability | LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period |
| Color Uniformity | RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C38.377-2011. |
| Optical | |
| BUG Rating | B0 U3 G1 |

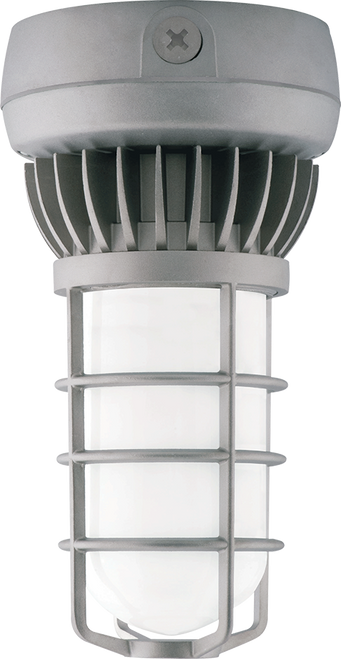

VXLED13DGDC
RAB Lighting
$286.00
- SKU:
- VXLED13DGDC
- UPC:
- 19813159058
- Availability:
- Usually ships within 1 week.
- Weight:
- 5.10 LBS
- Shipping:
- Calculated at Checkout
- voltage:
- 24v
- sub-tech:
- LED
- Spec Sheet:
- Spec Sheet
- Instructions:
- Instructions
- Watts:
- 13W
- Lumens:
- 729 lm
- Efficacy:
- 48.3 lm/W
- Type:
- DC to DC
- Input Watts:
- 15.1W
