APPLICATION:

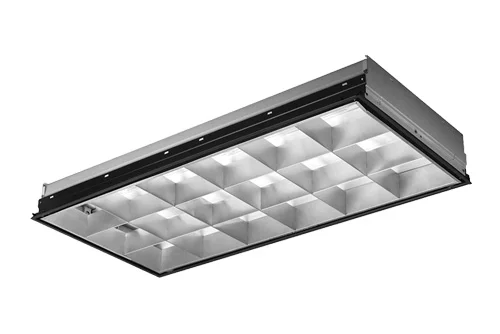

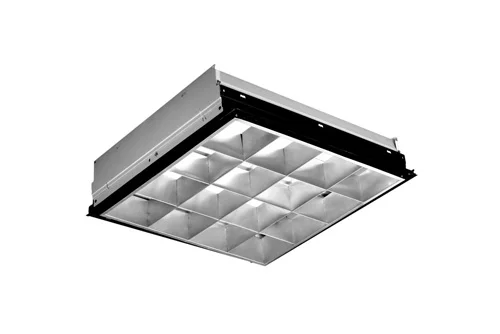

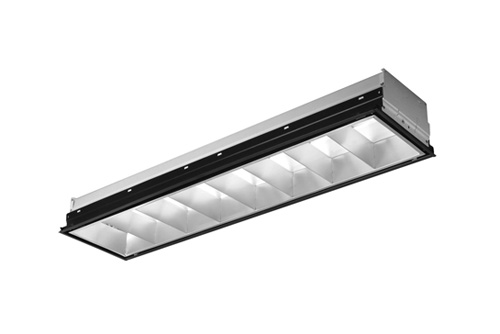

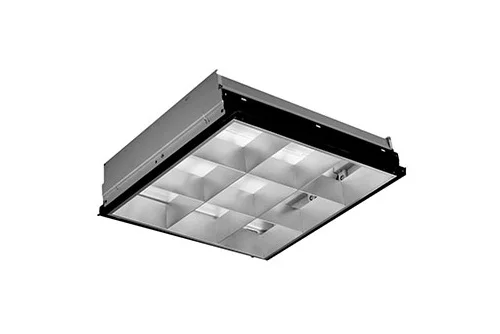

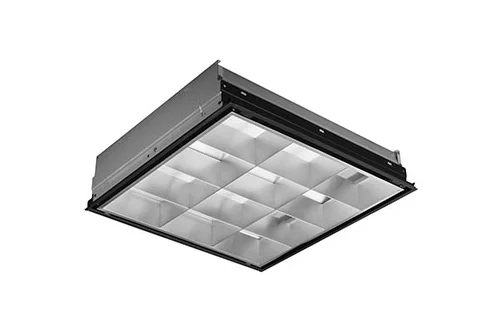

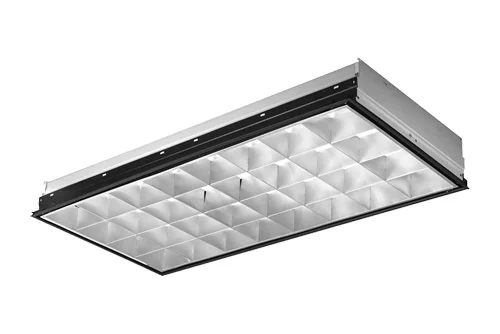

3Ó and 2Ó deep louver high performance recessed parabolic fixture. Designed for light cut-off and bright low-glare light. It is high efficiency, great performance and sleek detailing make it an ideal choice for office environments.
FEATURES:
- Die formed, cold-rolled, heavy gauge steel housing construction provides durability and strength.
- Parabolic louvers are made with anodize, semi-specular, 3Ó and 2Ó deep aluminum to perform low-glare bright light and they are interlocked to prevent vibration.
- The louvers can be hinge and spring latch from either side.
- Inside edge of housing has full flat black reveal for floating effect.
- T-bar safety clips are standard.
- Ship with plastic film to keep out construction dirt.
- Finish in high-gloss baked white enamel over rust inhibiting phosphate coating for maximum corrosion resistance.
MOUNTING:
- End to end row mounting available.
- Compatible with most ceiling types.
- Field installed flange kits are available.
LAMP:
- Standard T8, T5, T5HO and PL-L lamps are available.
- Pressure-lock lamp holders or easy twist lock lamp sockets.
- Lamp not included.
ELECTRICAL:
- High power factor instant start electronic ballast for T8 lamps are sound rate A, minimum starting temperature 0¡F (-18¡C), <10% THD and input voltage ranges of 120 to 277 volts comes as standard.
- High power factor programmed start electronic ballast for T5 and T5HO lamps are sound rate A, minimum starting temperature 0¡F (-18¡C), <10% THD and input voltage ranges of 120 to 277 volts comes as standard.
- Ballast disconnect plug provided as standard.
LISTING:
- UL/CUL listed and labeled.
- Suitable for damp locations.
- ARRA compliant (optional).
