APPLICATION:

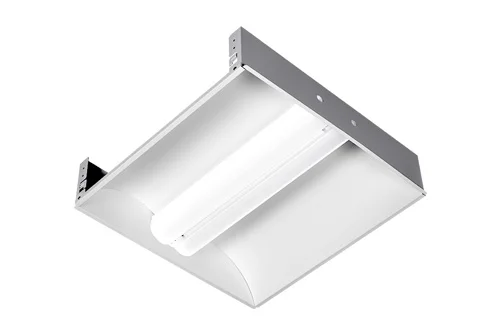

This attractive recessed fixture with a symmetric center basket provides soft ambient in direct and indirect lighting. High performance of direct and indirect lighting fixture reduces shadows and glare by combining aesthetically pleasing reflect lights. It is an excellent choice for modern office environments, classrooms, hospitals and retail spaces.
FEATURES:
- Die formed, cold-rolled, 21-gauge steel construction provides durability and strength.
- Finish in high-gloss baked white enamel over rust inhibiting phosphate coating for maximum corrosion resistance.
- Slope side softly reflect light back downwards.Lens to be white translucent acrylic engineered optical uniformity and non-glare with a ribbed prism design.
MOUNTING:
- Recessed mount in expose T-bar ceilings.
- Field installed flange kits are available.
- Compatible with most ceiling types.
LAMP:
- Standard T5, T5HO lamps are available. Twin Tube lamps sockets with double contact construction and lamp support clips.
- Pressure-lock lamp holders or easy twist lock lamp sockets.
- Lamps not included.
ELECTRICAL:
- High power factor programmed start electronic ballast for T5 and T5HO lamps are sound rate A, minimum starting temperature 0¡F (-18¡C), <10% THD and input voltage ranges of 120 to 277 volts comes as standard.
- Ballast disconnect plug provided as standard.
LISTING:
- UL/CUL listed and labeled.
- Suitable for damp locations.
- ARRA compliant.
- Made in USA.
