FEATURES:

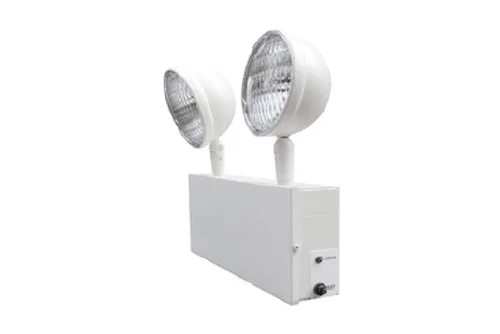

- City of Chicago Approved (120 minute emergency operation), heavy duty emergency lighting that is efficient and easy to install. It is completely self-contained and fully automatic.
- Durable 20-gauge steel construction with powder coated finish.
- Sealed momentary test switch, sealed AC-READY light.
- 90+ minute emergency operation.
- Test switch and charge rate indicator.
- Available in light gray finish housing.
MOUNTING:
- Universal knockout pattern on back for wall mount.
- Side and top knockouts for conduit feed applications.
ELECTRICAL:
- 120/277V, 60Hz dual voltage operation standard.
- Charge rate/power ÒONÓ LED indicator light and push-to-test switch for mandated code compliance testing.
- LVD (Low voltage disconnect) prevents battery from deep discharge.
LAMPS:
- Two 6V 12W adjustable halogen bi-pin lamps heads.
- Fully Adjustable, two glare-free halogen bi-pin lamp heads.
BATTERY:
- Maintenance-free, 6V sealed lead acid rechargeable battery.
- Remote capacity of up to 26W and 76W available on 50W and 100W models respectively.
- Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
- Internal solid-state transfer switch automatically connects the internal battery to LEDs for minimum 120 minute emergency illumination.
LISTING:
- 5 years limited warranty on all electronics and housing. Battery prorated for 2 years.
- UL listed for damp locations & meets UL924, National Electrical Code, ANSI /NFPA 70 and the Life Safety Code ANSI/NFPA 101.
