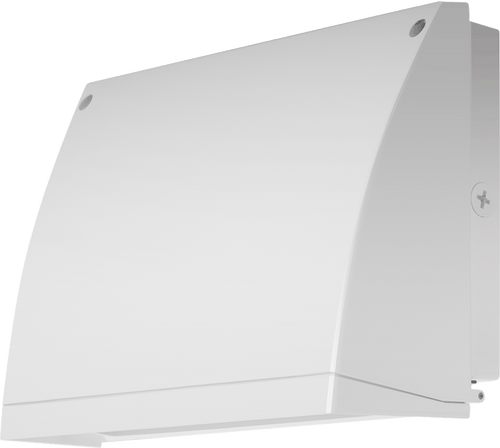

Shop RAB Lighting SLIMFC57YW/480 Light Bulbs & Fixtures

Description

Compliance
UL Listed	Suitable for Wet Locations. Wall Mount Only.
IP Rating	Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Dark Sky Conformance	Allows for conformance to the IDA's fully shielding requirement, emitting no light above 90 degrees.
Construction
Footprint	Designed to replace RAB HID WP1 wall packs, both in size and footprint template, so upgrading to LED is easy and seamless
Cold Weather Starting	The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature	Suitable for use in up to 40°C (104°F)
Housing	Precision die-cast aluminum housing and door frame
Cutoff	Cutoff (10°)
Lens	Microprismatic diffusion glass lens reduces glare and has smooth and even light distribution
Reflector	Specular thermoplastic
Gaskets	The unique design of the tight-lock gasket ensures no water or environmental elements will ever get inside the SLIM
Finish	Formulated for high durability and long-lasting color
Green Technology	Mercury and UV free. RoHS-compliant components.
LED Characteristics
LED	Long-life, high-efficiency, micro-power, surface mount LEDs; binned and mixed for uniform light output and color
Color Stability	LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Consistency	7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Electrical
Driver	Constant Current, Class 2, 480, 50-60Hz, 480: 0.09A
Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD	10.27% at 480V
Power Factor	97.16% at 480V
Photocell	480V Swivel photocell included. Photocell is only compatible with 480V.
Performance
Lifespan	100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Installation
Mounting	Die-cast back box with four (4) conduit entry points and knockout pattern for junction box or direct wall mounting. Hinged housing and bubble level for easy installation.
Recommended Mounting Height	Up to 20 ft
Optical
BUG Rating	B1 U0 G0

SLIMFC57YW/480
