| General | |
| Status | Active |

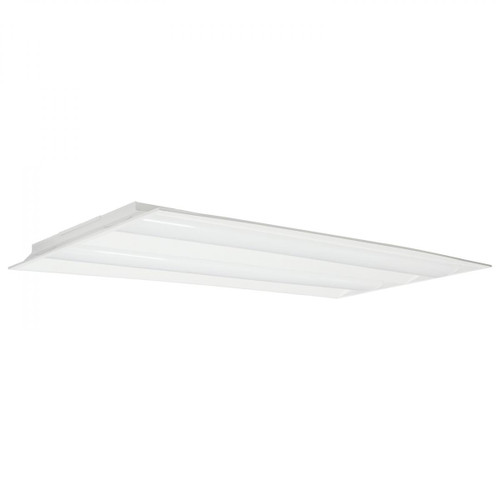

| Fixture Type | Double Basket Troffer |
| Finish | White |
| Wattage | 30W/40W/50W |
| Lumen Output | 3300L-5750L |
| CCT (Kelvin) | 3500K/4000K/5000K |
| IP Rating | IP20 |
| Indoor or Outdoor Fixture | Indoor |
| Panel Size | 2x4 |
| Specifications | |
| Technology | LED |
| Wattage | 30W/40W/50W |
| Lumen Output | 3300L-5750L |
| CCT (Kelvin) | 3500K/4000K/5000K |
| Color Temperature | Neutral White to Natural Light |
| CRI | 80 |
| Voltage | 100V-277V |
| Beam Angle | 120 |
| Rated Hours | 50000 |
| Operating Temperature | -20C (-4F) to +40C (+104F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming |
| Lens Material | Poly methyl methacrylate (PMMA) |
| Surge Protection | Built-in surge protection - 2KV |
| Weight (lb.) | 15.54 |
| IP Rating | IP20 |
| Material | Steel |
| Dimensions | |
| Height (in.) | 3.02 |
| Width (in.) | 23.74 |
| Length (in.) | 47.72 |
| Compliance | |
| Safety Listing | cULus - Certified |
| Location Rating | Damp |
| UL Application | LED Recessed Luminaire/Type IC |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | S-R15CV8 |
| IC Rated | Yes |
| California Prop 65 | Lead |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| Flicker Free | Yes |
| SDS Sheet | LED Fixture |
| Additional Information | |
| Additional Information | 90 Minute Battery Runtime |
| Warranty | 5 Year Limited - Fixtures |
| Packaging | |
| Each UPC | 045923655258 |
| Each Quantity | 1 |
| Each Length (in.) | 49.49 |
| Each Width (in.) | 4.33 |
| Each Height (in.) | 25.71 |
| Each Weight (lb.) | 16.10 |
| Each Cube (CuFt.) | 3.1883 |
| Pack Type | Box |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923655255 |
| Case Quantity | 1 |
| Case Length (in.) | 49.49 |
| Case Width (in.) | 4.33 |
| Case Height (in.) | 25.71 |
| Case Weight (lb.) | 16.10 |
| Case Cube (CuFt.) | 3.1883 |
5 Year Limited - Fixtures
