| Performance | |

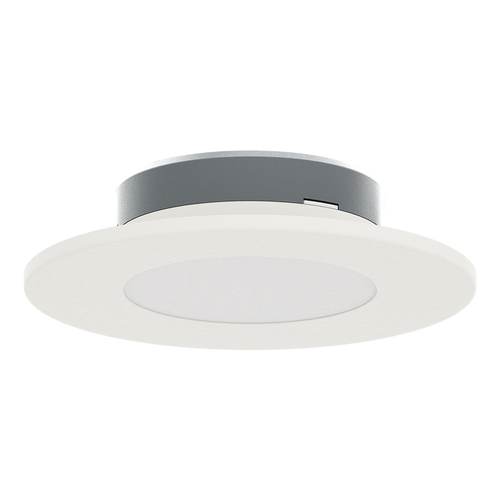

| Description | The SM3N1 is a versilte and flexible option offering 5 field selectable color temperatures with a quality edge-lit LED design. With 3 mounting options built into a single fixture choose the mounting option that fits best: Junction Box, Recessed Housing, or Direct Ceiling. |
| Product Type | Surface & Flush Mounts |
| Input Wattage | 10W |
| Lumens | 5000K: 898lm4000K: 926lm3500K: 915lm3000K: 883lm2700K: 879lm |
| Efficacy | 5000K: 90lm/W4000K: 93lm/W3500K: 91lm/W3000K: 88lm/W2700K: 88lm/W |
| L70 Lifespan | 50,000-Hour LED lifespan based on IES LM-70 results |
| Wattage Equivalency | Equivalent to 60W CFL |
| Compliance | |
| UL Listed | Suitable for wet locations |
| Fixture Rating | Enclosed |
| IC Rated | Suitable for direct contact with insulation |
| Energy Star Approved | ENERGY STAR® Version 2.2 Certified |
| Energy Star ID | 2395533 |
| LED Characteristics | |
| Color Accuracy (CRI) | 90 CRI |
| Beam Angle | 120° |
| R9 Value | High color performance with R9 greater than 50 |
| Electrical | |
| Dimming Driver | TRIAC compatible dimmer with dimming as low as 10%. |
| THD | <20% |
| Power Factor | >0.9 |
| Input Voltage | 120V |
| Operating Frequency | 60Hz |
| Construction | |
| Material | PBT |
| Shape | Round |
| Operating Temperature | -20°C (-4°F) to 40°C (104°F) |
| Size | 4" |
| Installation | |
| Base Type | E26 Edison |
SM3N1-4R-10-9CCT-120-W-EL
RAB Lighting
- SKU:
- SM3N1-4R-10-9CCT-120-W-EL
- UPC:
- 192552000000
- Availability:
- Usually ships within 1 week.
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 12 units
- Spec Sheet:
- Spec Sheet
- Instructions:
- Instructions
- Watts:
- 10W
- Color Temp:
- Field Adjustable 2700/3000/3500/4000/5000K
- Lumens:
- 884-926 lm
- Efficacy:
- 88-93 lm/W
- Color Accuracy:
- 90 CRI
- L70:
- 50,000 Hours
- Type:
- Constant Current
- V120:
- 0.10A
- Input Watts:
- 10W
