| Field Adjustability | |
| Field Adjustable | Color temperature selectable by 3000K, 4000K and 5000K |
| Compliance | |
| UL Listed | Suitable for wet locations |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80. |
| IP Rating | Ingress protection rating of IP65 for dust and water |
| DLC Listed | This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: PL3FKMCN0SF0 |
| Performance | |
| Lifespan | 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Wattage Equivalency | Equivalent to 200W Metal Halide |
| LED Characteristics | |
| LEDs | Long-life, high-efficiency, surface-mount LEDs |
| Electrical | |
| Driver | Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.40A, 208V: 0.30A, 240V: 0.20A, 277V: 0.15A |
| Dimming Driver | Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| Photocell | 120-277V selectable photocell that can be turned on and off. |
| Surge Protection | L-N:4kV, L/N-GND:4KV |
| Construction | |
| Cold Weather Starting | The minimum starting temperature is -40°C (-40°F) |
| Ambient Temperature | Max Power Temp Rating: 50°C (122°F)Middle Power Temp Rating: 50°C (122°F))Low Power Temp Rating: 50°C (122°F) |
| Housing | Precision die-cast aluminum housing and door frame |
| Lens | Polycarbonate lens |
| Cut Off | Full cutoff (0°) |
| Finish | Formulated for high durability and long-lasting color |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Installation | |
| Mounting | Hinged wiring access and conduit entries on the back, sides, top and bottom make installation a snap |

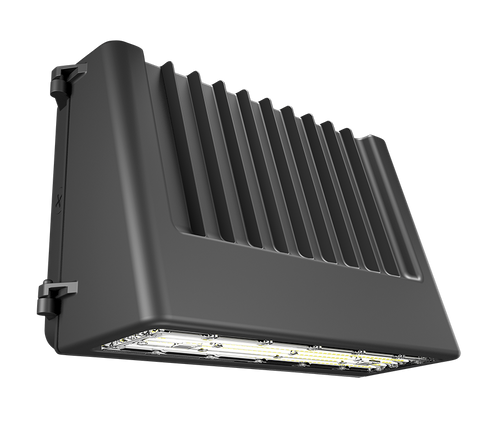

SLIM17FAFC40
RAB Lighting
$129.00
- SKU:
- SLIM17FAFC40
- UPC:
- 192552000000
- Availability:
- Usually ships within 1 week.
- Weight:
- 6.80 LBS
- Shipping:
- Calculated at Checkout
- Sell Sheet:
- Sell Sheet
- Spec Sheet:
- Spec Sheet
- Instructions:
- Instructions
- Watts:
- 40W
- Color Temp:
- 3000/4000/5000K
- Lumens:
- 4595/5421/4826 lm
- Efficacy:
- 121.9/141.8/126.5 lm/W
- Color Accuracy:
- 80 CRI
- L70:
- 100,000 Hours
- Type:
- Constant Current
- V120:
- 0.40A
- V208:
- 0.30A
- V240:
- 0.20A
- V277:
- 0.15A
- Input Watts:
- 37.7/38.2/38.2W
