| Performance | |
| Description | Microwave ocuppancy sensor kit |
| Sensor Settings | |
| Operating Voltage | 12 ± 2V DC |
| Operating Current | 30mA |
| Output | DIM 0-10V |
| Stand-By Power | <0.5W |
| Brightness | 0%-100%/Quick setting: 70%/80%/90%/100% |
| Hold Time | 10s/1min/10min/30min |
| Daylight Threshold | 10Lux/30Lux/50Lux/100Lux/Disable |
| Lux On-Off | Adopted dual PD technology. H17-PIR is able to differenciate artificial light brightness from natural light after installed inside. |
| Stand-By Time | 1min/30min/60min/+∞ |
| Stand-By Dimming Level | 10%/20%/30%/50% |
| Detection Angle | ≤120° (wall mounted) 360° (ceiling mounted) |
| Control Line | Black White 12V+ ; Purple: DIM+ ; Pink GND/DIM- |
| Mounting Height | Max 6M (ceiling mounted) |
| Detection Range | Max 15M |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Construction | |
| Finish | Formulated for high durability and long-lasting color |

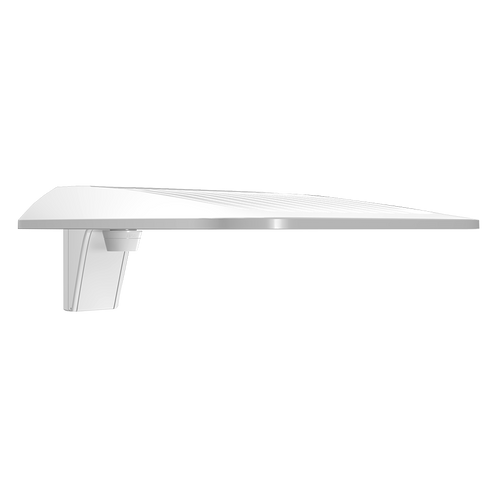

MVS-OD
RAB Lighting
- SKU:
- MVS-OD
- UPC:
- 192552000000
- Availability:
- Usually ships within 1 week.
- Weight:
- 0.10 LBS
- Sell Sheet:
- Sell Sheet
- Spec Sheet:
- Spec Sheet
- Instructions:
- Instructions
