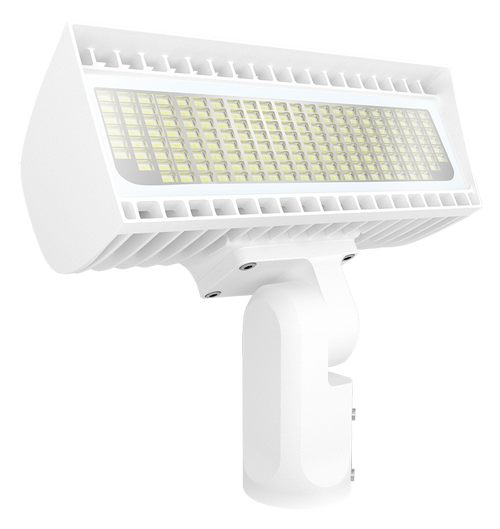

RAB Lighting FXLEDXSSFW/480 FLEXFLOOD-XS FA 80/60/40W SF 4K-5K 480V WH

Description

Field Adjustability
Field Adjustable	Field Adjustable Light Output: 80W/60W/40W (factory default 80W)Color temperature (selectable by 4000K and 5000K)
Compliance
UL Listed	Suitable for wet locations. Suitable for mounting within 4ft (1.2m) of the ground.
IP Rating	Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant	This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
LED Characteristics
LEDs	Long-life, high-efficacy, discrete, surface-mount LEDs
Color Consistency	7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability	LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity	RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Electrical
Driver	40W: Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.11A60W: Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.14A80W: Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.19A
Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD	6.54% at 480V
Power Factor	95.02% at 480V
Surge Protection	6kV
Performance
Lifespan	100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency	80W: 400W Metal Halide60W: 350W Metal Halide40W: 174W Metal Halide
Optical
NEMA Type	NEMA Beam Spread of 6H x 6V
Construction
Cold Weather Starting	The minimum starting temperature is -40°C (-40°F)
Ambient Temperature	Max Power Temp Rating: 40°C (104°F)Middle Power Temp Rating: 40°C (104°F)Low Power Temp Rating: 40°C (104°F)
Housing	Die-cast aluminum
Tilt Increment	Rotates in 5 degree increments
Lens	Ultra clear, tempered glass
Reflector	Vacuum metalized polycarbonate
Vibration Rating	3G vibration rating per ANSI C136.31
Effective Projected Area	EPA = 0.5
Gaskets	High-temperature silicone gaskets
Finish	Formulated for high durability and long-lasting color
Green Technology	Mercury and UV free. RoHS-compliant components.
Installation
Mounting	2 3/8" slipfitter mount with stainless steel hardware
