| Compliance | |
| UL Listed | Suitable for damp locations |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80. |
| DLC Listed | This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: PKE1FROL |
| Performance | |
| Lifespan | 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| LED Characteristics | |
| LEDs | Multi-chip, high-output, long-life LEDs |
| Color Uniformity | RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. |
| Construction | |
| Operating Temperature | -20°C (-4°F) to 50°C (122°F) |
| Housing | 22 gauge die formed with white powder coat finish. Y Hooks included for easy chain or cable mounting. |
| Reflector | White painted, reflective, die formed painted steel |
| Lens | Polycarbonate lens |
| Finish | Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Installation | |
| Mounting | V hooks and optional pendant mounting. AEROBAY® comes with two 42" chains. |
| Electrical | |
| Driver | Class 2, Constant Current, 50/60 Hz, 480V: 0.63A |
| THD | 13.33% at 120V |
| Power Factor | 98.6% at 480V |
| Surge Protection | 6kV |

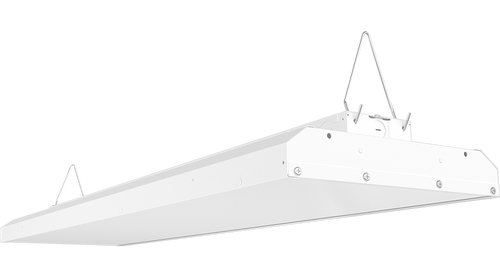

ARBAY4-315/480
RAB Lighting
- SKU:
- ARBAY4-315/480
- Availability:
- Usually ships within 1 week.
- Weight:
- 22.40 LBS
- Spec Sheet:
- Spec Sheet
- Instructions:
- Instructions
- Watts:
- 315W
- Color Temp:
- 5000K (Cool)
- Lumens:
- 43,822 lm
- Efficacy:
- 149.1
- Color Accuracy:
- 83 CRI
- L70:
- 100,000 Hours
- Type:
- Constant Current
- Input Watts:
- 293.9W
