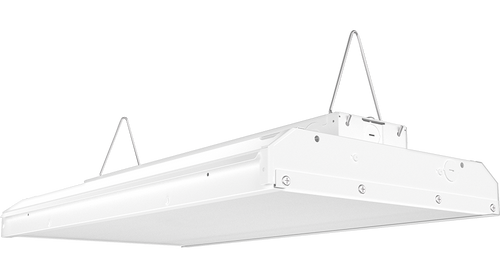

RAB Lighting ARBAY2-95N/8CPT2 Aerobay 2Ft 95W 4000K 277V 8Ft Twist Lock White

Description

Compliance
UL Listed	Suitable for damp locations
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed	This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: PQDGXGOH
Performance
Lifespan	100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDs	Multi-chip, high-output, long-life LEDs
Color Uniformity	RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Operating Temperature	-20°C (-4°F) to 50°C (122°F)
Housing	22 gauge die formed with white powder coat finish. Y Hooks included for easy chain or cable mounting.
Reflector	White painted, reflective, die formed painted steel
Lens	Polycarbonate lens
Cord & Plug	8 ft cord and NEMA L7-15P twistlock plug for 277V only
Finish	Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
Green Technology	Mercury and UV free. RoHS-compliant components.
Installation
Mounting	V hooks and optional pendant mounting. AEROBAY® comes with two 42" chains.
Electrical
Driver	Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.81A, 208V: 0.48A, 240V: 0.41A, 277V: 0.36A
THD	4.09% at 120V, 9.01% at 277V
Power Factor	99.8% at 120V, 96.7% at 277V
Surge Protection	2.5kVFor areas prone to surges, upgrade to 10kV surge protection available
