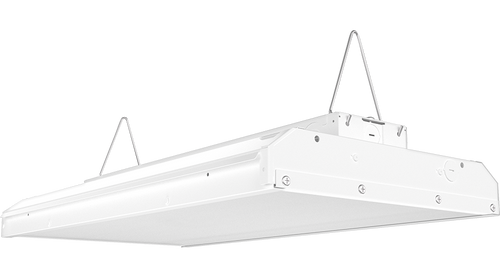

ARBAY2-120N

RAB Lighting

$199.00

(No reviews yet) Write a Review

SKU:: ARBAY2-120N
UPC:: 19813507514
Availability:: Usually ships within 1 week.
Weight:: 13.30 LBS
Shipping:: Calculated at Checkout
Spec Sheet:: Spec Sheet
Instructions:: Instructions
Watts:: 120W
Color Temp:: 4000K (Neutral)
Lumens:: 16,529 lm
Efficacy:: 144.7
Color Accuracy:: 84 CRI
L70:: 100,000 Hours
Type:: Constant Current
V120:: 0.97A
V208:: 0.57A
V240:: 0.49A
V277:: 0.42A
Input Watts:: 114.2W

Spec Sheet:

Spec Sheet

Instructions:

Instructions

Watts:

120W

Color Temp:

4000K (Neutral)

Lumens:

16,529 lm

Efficacy:

144.7

Color Accuracy:

84 CRI

L70:

100,000 Hours

Type:

Constant Current

V120:

0.97A

V208:

0.57A

V240:

0.49A

V277:

0.42A

Input Watts:

114.2W

Current Stock:

Quantity:

Adding to cart… The item has been added

Description

Compliance
UL Listed	Suitable for damp locations
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed	This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: PMQ3SJXB
Performance
Lifespan	100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDs	Multi-chip, high-output, long-life LEDs
Color Uniformity	RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Operating Temperature	-20°C (-4°F) to 50°C (122°F)
Housing	22 gauge die formed with white powder coat finish. Y Hooks included for easy chain or cable mounting.
Reflector	White painted, reflective, die formed painted steel
Lens	Polycarbonate lens
Finish	Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
Green Technology	Mercury and UV free. RoHS-compliant components.
Installation
Mounting	V hooks and optional pendant mounting. AEROBAY® comes with two 42" chains.
Electrical
Driver	Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.97A, 208V: 0.57A, 240V: 0.49A, 277V: 0.42A
THD	4.75% at 120V, 7.64% at 277V
Power Factor	99.9% at 120V, 95.5% at 277V
Surge Protection	2.5kVFor areas prone to surges, upgrade to 10kV surge protection available
