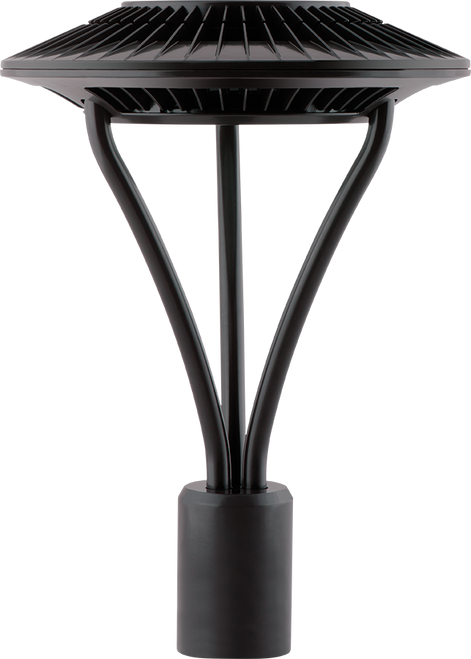

RAB Lighting ALED5T52/480/D10 Area Light Post Top 52W Cool 480V Dim LED Type V Bz

Description

Compliance
UL Listed	Suitable for wet locations
IP Rating	Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed	This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: P1I5LQHY
Performance
Lifespan	100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency	Equivalent to 150W Metal Halide
Construction
IES Classification	The Type II distribution is ideal for wide walkways, on ramps and entrance roadways, bike paths and other long and narrow lighting applications. This type is meant for lighting larger areas and usually is located near the roadside. This type of lighting is commonly found on smaller side streets or jogging paths.
Effective Projected Area	EPA = 0.75
Maximum Ambient Temperature	Suitable for use in up to 40°C (104°F)
Cold Weather Starting	The minimum starting temperature is -40°C (-40°F)
Thermal Management	Superior thermal management with external "Air-Flow" fins
Housing	Die-cast aluminum housing, lens frame and mounting arm
Reflector	Specular vacuum-metallized polycarbonate
Gaskets	High-temperature silicone gaskets
Finish	Formulated for high durability and long-lasting color
Green Technology	Mercury and UV free. RoHS-compliant components.
Electrical
Drivers	Constant Current, Class 2 with 6kV surge protection, 480VAC, 50/60 Hz, 480V: 0.12A
Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. See dimmer compatibility guide here.
THD	7.07% at 480V
Power Factor	89% at 480V
Surge Protection	4kV
LED Characteristics
LEDs	Multi-chip, high-output, long-life LEDs
Color Stability	LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity	RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting	Heavy-duty 1/2" thread mounting arm with "O" ring seal & stainless steel screws
Optical
BUG Rating	B3 U0 G2

ALED5T52/480/D10
