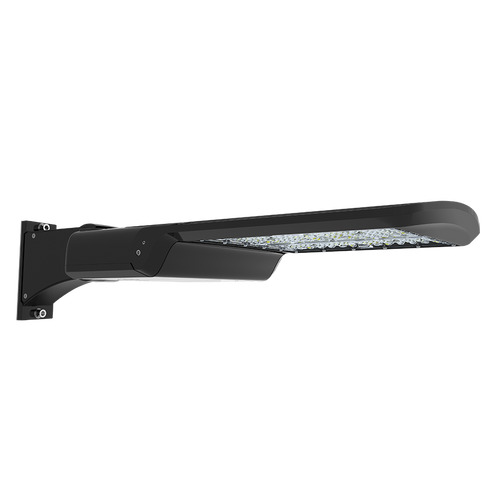

RAB Lighting A17-4T70/3PRS Area Light A17 TYPE 4 70W LED 120-277V Pole Mount 3PRS BZ

Description

Compliance
UL Listed	Suitable for wet locations
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating	Ingress protection rating of IP65 for dust and water
DLC Listed	This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: S-ML9KBD (Outdoor Pole/Arm-Mounted Area and Roadway Luminaires)S-S0QCKY (Architectural Flood and Spot Luminaires)
Electrical
Driver	70W: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.58A, 208V: 0.33A, 240V: 0.30A, 277V: 0.27A 60W: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.49A, 208V: 0.28A, 240V: 0.26A, 277V: 0.23A 50W: Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.41A, 208V: 0.24A, 240V: 0.21A, 277V: 0.19A
Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD	13.33% at 120V
Power Factor	99.91% at 120V, 91.9% at 277V
Surge Protection	6kV
3-Pin Receptacle with Shorting Cap	ANSI C136.41 3-pin receptacle, compatible with wireless control systems
Performance
Lifespan	100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Construction
IES Classification	The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
Cold Weather Starting	The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature	Suitable for use in up to 40°C (104°F)
Lens	Polycarbonate lens
Housing	Die-cast aluminum housing, lens frame and mounting arm
Vibration Rating	3G vibration rating per ANSI C136.31
Effective Projected Area (Without Shield)	1 Fixture: 0.60 ft² 2 Fixtures at 90°: 0.86 ft² 2 Fixtures at 180°: 1.21 ft² 3 Fixtures at 90°: 1.47 ft² 4 Fixtures at 90°: 1.47 ft²
Effective Projected Area (With Shield)	1 Fixture: 0.64 ft² 2 Fixtures at 90°: 1.14 ft² 2 Fixtures at 180°: 1.28 ft² 3 Fixtures at 90°: 1.8 ft² 4 Fixtures at 90°: 1.8 ft²
Finish	Formulated for high durability and long-lasting color
Green Technology	Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs	Long-life, high-efficiency, surface-mount LEDs
Color Uniformity	RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting	Universal mounting arm compatible for hole spacing patterns from 1" to 5 1/2" center to center. Round Pole Adaptor plate included as a standard. Easy slide and lock to mount fixture with ease. Round pole diameter must be >4" to mount fixtures at 90° orientation.
Optical
BUG Rating	B3 U0 G3

A17-4T70/3PRS
