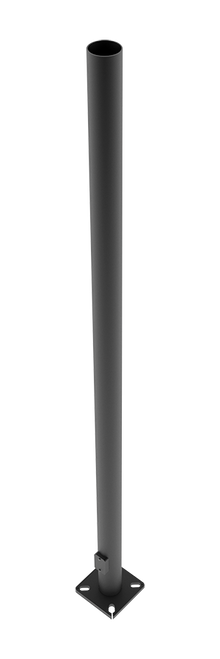

RAB Lighting PTR6-11-15D2 Pole 6 Taper 11 Gauge 15 Foot Drilled Two Sides Square Base, PTR6-11-15D2 or RAB

PTR6-11-15D2

RAB Lighting

$795.00
(No reviews yet) Write a Review
SKU:
PTR6-11-15D2
UPC:
19813742144
Availability:
Usually ships within 1 week.
Weight:
127.00 LBS
Shipping:
Calculated at Checkout
sub-tech:
LED
Mounts:
Square
Spec Sheet:
Spec Sheet
sub-tech:
LED
Mounts:
Square
Spec Sheet:
Spec Sheet
Adding to cart… The item has been added
Compliance
CSA ListedSuitable for wet locations
Performance
DescriptionSteel pole 6" taper 11 gauge 15 foot drilled two sides square base
Construction
Base Shaft Diameter6"
Top Diameter4"
Hand HolesReinforced with grounding lug and removable cover
Base PlatesSlotted base plates 36,000 p.s.i.
ColorBronze powder coating
Height15 ft
Gauge11
Wall Thickness1/8"
Anchor Bolt TemplatesWARNING Template must be printed on 12" x 18" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.
Max EPA's/Max Weights70MPH 26.2 ft/600 lb.80MPH 19.4 ft/500 lb.90MPH 13.6 ft/500 lb.100MPH 11.2 ft/500 lb.110MPH 8.1 ft/495 lb.120MPH 6.7 ft490lb.130MPH 5.3 ft/450 lb.140MPH 4.1 ft/450 lb.150MPH 3.2 ft/440 lb
AccessoriesBase/Cap: BCK-RT6/15Anchor Bolts: BOLT5-8
