| Compliance | |
| CSA Listed | Suitable for wet locations |
| Performance | |

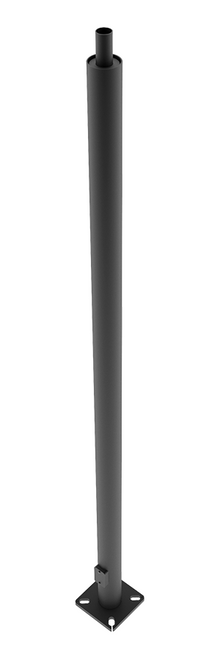

| Description | Steel pole 5" round 7 gauge 20 foot welded tenon square base |
| Construction | |
| Shaft | 46,000 p.s.i. minimum yield. |
| Hand Holes | Reinforced with grounding lug and removable cover |
| Base Plates | 36,000 p.s.i. minimum yield. |
| Color | Bronze powder coating |
| Height | 20 ft |
| Gauge | 7 |
| Wall Thickness | 3/16" |
| Shaft Size | 5" |
| Anchor Bolt Templates | WARNING Template must be printed on 12" x 18" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online. |
| Max EPA's/Max Weights | 70MPH 25.0 ft/450 lb.80MPH 18.2 ft/420 lb.90MPH 13.6 ft/400 lb.100MPH 10.2 ft/380 lb.110MPH 7.8 ft/170 lb.120MPH 5.9 ft/160lb.130MPH 4.4 ft/150 lb.140MPH 3.3 ft/135 lb.150MPH 2.4 ft/50 lb |
| Accessories | Base/Cap: BASE-R5Anchor Bolts: BOLT5-8 |
PR5-07-20WT
RAB Lighting
- SKU:
- PR5-07-20WT
- UPC:
- 19813742274
- Availability:
- Usually ships within 1 week.
- Weight:
- 235.40 LBS
- Mounts:
- Square
- Spec Sheet:
- Spec Sheet
