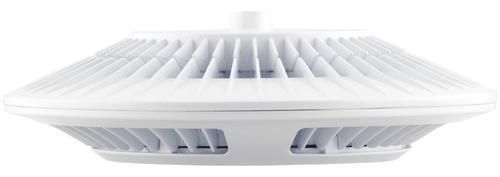

PLED78W/BL

RAB Lighting

$766.00

(No reviews yet) Write a Review

SKU:: PLED78W/BL
UPC:: 19813000060
Availability:: Usually ships within 1 week.
Weight:: 18.00 LBS
Shipping:: Calculated at Checkout
sub-tech:: LED
Kelvin:: 5000K
Mounts:: Pendant
color:: White
Spec Sheet:: Spec Sheet
Instructions:: Instructions
Watts:: 78W
Color Temp:: 5000K (Cool)
Lumens:: 5,130 lm
Efficacy:: 85.8 lm/W
Color Accuracy:: 73 CRI
L70:: 100,000 Hours
Type:: Constant Current
V120:: 0.78A
V208:: 0.51A
V240:: 0.45A
V277:: 0.39A
Input Watts:: 59.8W

sub-tech:

LED

Kelvin:

5000K

Mounts:

Pendant

color:

White

Spec Sheet:

Spec Sheet

Instructions:

Instructions

Watts:

78W

Color Temp:

5000K (Cool)

Lumens:

5,130 lm

Efficacy:

85.8 lm/W

Color Accuracy:

73 CRI

L70:

100,000 Hours

Type:

Constant Current

V120:

0.78A

V208:

0.51A

V240:

0.45A

V277:

0.39A

Input Watts:

59.8W

Current Stock:

Quantity:

Adding to cart… The item has been added

Description

Compliance
UL Listed	Suitable for wet locations
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan	100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDs	6x13W high-output, long-life LEDs
Color Consistency	7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability	LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity	RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting	The minimum starting temperature is -40°C (-40°F)
Ambient Temperature	Suitable for use in up to 35°C (95°F)
Housing	Precision die-cast aluminum housing, lens frame
Lens	Clear tempered glass lens
Gaskets	High-temperature silicone
Finish	Formulated for high durability and long-lasting color
Green Technology	Mercury and UV free. RoHS-compliant components.
Optical
BUG Rating	B2 U1 G1
Photometrics	IES file is available for 33% light level for Bi-Levels by contacting the RAB Lighting Design department
Electrical
Drivers	3x26W Driver, Constant Current, Class 2, 100V-277V, 50/60 Hz, 6kv Surge Protection, 720mA, 100-277VAC 0.4 Amps., THD is less than or equal to 20%, Power Factor 99.4%.
THD	9.6% at 120V, 14.9% at 277V
