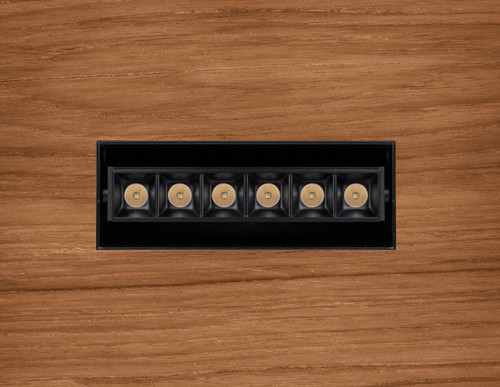

ModuLED MXLJTS1 Trimless Adjustable, Miniature Linear LED

ModuLED MXLJTS1 Trimless Adjustable, Miniature Linear LED



Damp Location,IC Rated,US Assembled,Dedicated LED,Adjustable,Downlight,ETL LISTED,120V,277V,Title 24



Competitively priced adjustable, trimless modular design
2700K, 3000K, 3500K, and 4000K CCT
1000-3000 delivered lumens (11W-33W)
Dimming down to 1% with (-DIN) option*
Insulation Contact (IC) rated

Driver/Frame
Ê*
MXLJTS1-105: 5-Cell Adjustable, 1000lm (11W)
MXLJTS1-110: 10-Cell Adjustable, 2000lm (22W)
MXLJTS1-115: 15-Cell Adjustable, 3000lm (33W)
IC Options
Ê*
Blank: Non-IC
IC: Insulation Contact (IC) Rated
Cell Finish
Ê*
B: Black
W: White
S: Silver
CSTM: Custom
Dimming
Ê*
UE-D10: 0-10V Dimming (120V/277V)
-DIN: 2-Wire INC/ 3-Wire ELV (120V)*
Beam Spread
Ê*
-B15: 15¡ Narrow Spot
-B30: 30¡ Narrow Flood
-B40: 40¡ Flood
CCT
Ê*
-T27: 2700K, 90 CRI
-T30: 3000K, 90 CRI
-T35: 3500K, 90 CRI
-T40: 4000K, 90 CRI
Mounting
Ê*
Blank: Sheetrock / Drywall
-WD: Trimless Wood
1
