| Compliance | |
| UL Listed | Suitable for Wet Locations as a Downlight. Suitable for Damp Locations as an Uplight. Wall Mount only. Suitable for Mounting within 4ft. of ground. |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80. |
| DLC Listed | This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: P5NSZ02C |
| Performance | |
| Lifespan | 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Wattage Equivalency | Equivalent to 70W Metal Halide |
| Electrical | |
| Driver | Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.09A, 208V: 0.05A, 240V: 0.05A, 277V 0.04A |
| Dimming Driver | Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| THD | 6.51% at 120V, 13.57% at 277V |
| Power Factor | 99% at 120V, 90.6% at 277V |
| Sensor Settings | |
| MSS Sensor Option | MSS sensor options use state-of-the-art surface mount technology (SMT), just like cellular phones and beepers. SMT gives you more reliability, greater RF immunity, and a compact sensor that can fit neatly where others cannot. The wide 180° view detects movement along the entire side of a building with only one compact sensor. It will detect people as they exit or enter. The hard lens is molded as part of the case, vandalproof, rainproof, bugproof and absolutely sealed. Sensor functions best when movement is across its detection pattern, not towards the sensor. |
| Construction | |
| Finish | Formulated for high durability and long-lasting color |
| Cold Weather Starting | The minimum starting temperature is -40°C (-40°F) |
| Maximum Ambient Temperature | Suitable for use in up to 40°C (104°F) |
| Housing | Precision die-cast aluminum housing, lens frame |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Gaskets | High-temperature Silicone |
| LED Characteristics | |
| Color Consistency | 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color |
| Color Stability | LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period |
| Color Uniformity | RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. |
| Lumen Maintenance | The LED will deliver 70% of its initial lumens at 100,000 hours of operation |
| Installation | |
| Mounting | Surface plate and Junction box |
| Optical | |
| BUG Rating | B1 U0 G0 |

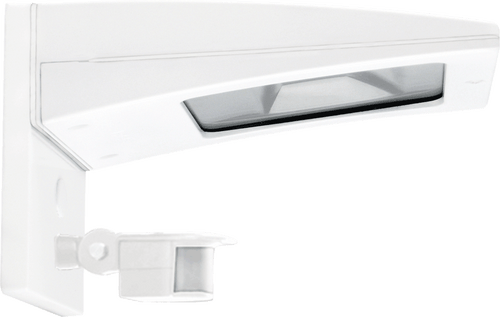

WPLED10YMSSW
RAB Lighting
$338.00
- SKU:
- WPLED10YMSSW
- UPC:
- 19813761640
- Availability:
- Usually ships within 1 week.
- Weight:
- 0.00 LBS
- Shipping:
- Calculated at Checkout
- sub-tech:
- LED
- Kelvin:
- 3000K
- Spec Sheet:
- Spec Sheet
- Instructions:
- Instructions
- Watts:
- 10W
- Color Temp:
- 3000K (Warm)
- Lumens:
- 1,297 lm
- Efficacy:
- 107.2 lm/W
- Color Accuracy:
- 71 CRI
- L70:
- 100,000 Hours
- Type:
- Constant Current
- V120:
- 0.09A
- Input Watts:
- 12.1W
