| Compliance | |
| UL Listed | Suitable for Wet Locations as a Downlight. Suitable for Damp Locations as an Uplight. Wall Mount only. Suitable for Mounting within 4ft. of ground. |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80. |
| DLC Listed | This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: PXV87AVZ |
| Performance | |
| Lifespan | 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Wattage Equivalency | Equivalent to 70W Metal Halide |
| Electrical | |
| Driver | Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.11A, 208V: 0.07A, 240V: 0.06A, 277V 0.05A |
| Dimming Driver | Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| THD | 7.08% at 120V, 15.05% at 277V |
| Power Factor | 99.1% at 120V, 90.5% at 277V |
| Surge Protection | 4kV |
| Construction | |
| Finish | Formulated for high durability and long-lasting color |
| Cold Weather Starting | The minimum starting temperature is -40°C (-40°F) |
| Maximum Ambient Temperature | Suitable for use in up to 55°C (131°F) |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Gaskets | High-temperature Silicone |
| LED Characteristics | |
| Color Consistency | 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color |
| Color Stability | LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period |
| Color Uniformity | RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. |
| Color Temperature | 3000K |
| Lumen Maintenance | The LED will deliver 70% of its initial lumens at 100,000 hours of operation |
| Optical | |
| BUG Rating | B1 U0 G0 |

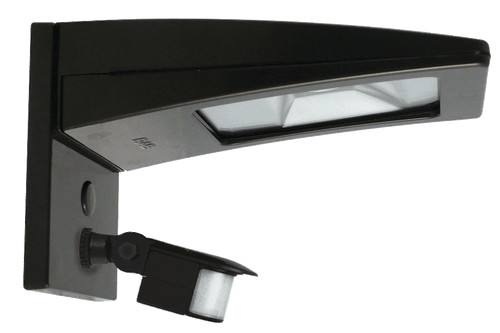

WPLED13Y
RAB Lighting
$343.00
- SKU:
- WPLED13Y
- UPC:
- 19813019611
- Availability:
- Usually ships within 1 week.
- Weight:
- 4.40 LBS
- Shipping:
- Calculated at Checkout
- voltage:
- 277v
- sub-tech:
- LED
- Kelvin:
- 3000K
- Spec Sheet:
- Spec Sheet
- Instructions:
- Instructions
- Watts:
- 13W
- Color Temp:
- 3000K (Warm)
- Lumens:
- 1,665 lm
- Efficacy:
- 113 lm/W
- Color Accuracy:
- 71 CRI
- L70:
- 100,000 Hours
- Type:
- Constant Current
- V120:
- 0.11A
- V208:
- 0.07A
- V240:
- 0.06A
- V277:
- 0.05A
- Input Watts:
- 14.7W
