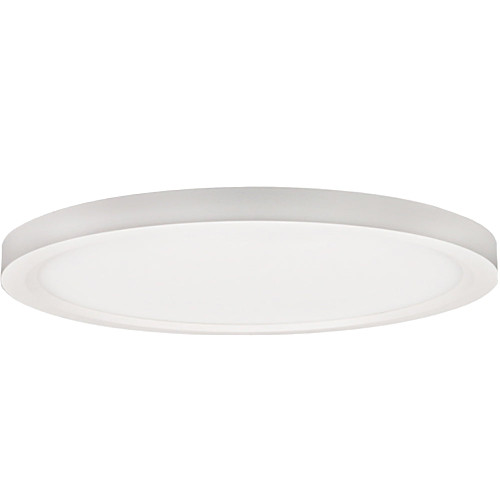

Lotus LED Lights ADS12R9 12_ Edgelit Disk 22W Ð ADS12R9
- 12_ Multi-Purpose Surface Mounted Energy-Efficient Fixture
- Low Profile With Narrow Flange For Elegant Appearance
- Fast & Easy to Install in J-Box Ð Save on Labor
- Triac Dimmable Down to 10% Flicker Free
- Options of 3000K, 4000K or 5CCT user selectable
- CRI 90+ for True Color Rendering
- Wet Location Approved
- Warranty: 5 Year
Video Overview
Discover Surface Mount Edge Lit Disks 7_ & 12_
Technical Specifications
CONSTRUCTION:
Round 12_ Multi-Purpose Surface Mount Fixture
MOUNTING:
Installation Instructions
- Driver Input Voltage: 120V AC
- Dimmability Ð TRIAC Dimmable 10% Ð 100%
- Energy Used: 22W
- Halogen equivalent: 120W
- Beam Angle: 120¡
- Stock Light colors: 3000K, 4000K and 5CCT user selectable 2700-3000-3500-4000-5000K
- Light output: 1320 to 1570 lm
- Trim color: White, other colors available by custom order
- CRI: 90+
- Ambient Operating Temperature: -4¡F (-20¡C) to +104¡F (+40¡C)
- Warranty: 5 Years
- Rated: cETLus, Energy Star, T24
DIMENSIONS:
- OD 12_; Thickness 1_
Downloads
CONSTRUCTION:
Round 12_ Multi-Purpose Surface Mount Fixture
MOUNTING:
Installation Instructions
- Driver Input Voltage: 120V AC
- Dimmability Ð TRIAC Dimmable 10% Ð 100%
- Energy Used: 22W
- Halogen equivalent: 120W
- Beam Angle: 120¡
- Stock Light colors: 3000K, 4000K and 5CCT user selectable 2700-3000-3500-4000-5000K
- Light output: 1320 to 1570 lm
- Trim color: White, other colors available by custom order
- CRI: 90+
- Ambient Operating Temperature: -4¡F (-20¡C) to +104¡F (+40¡C)
- Warranty: 5 Years
- Rated: cETLus, Energy Star, T24
DIMENSIONS:
- OD 12_; Thickness 1_
Discover Surface Mount Edge Lit Disks 7_ & 12_
Specification Sheet
Installation Instructions
Photometric PDF files:
PDF 2700K | PDF 3000K | PDF 3500K | PDF 4000K | PDF 5000K
Photometric IES files:
IES 2700K | IES 3000K | IES 3500K | IES 4000K | IES 5000K
