| Compliance | |
| UL Listed | Suitable for wet locations. Suitable for ground mounting. |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80. |
| DLC Listed | This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: PSJC4RRW |
| LED Characteristics | |
| LEDs | Multi-chip, high-output, long-life LEDs |
| Color Stability | RAB LEDs exceed industry standards for chromatic stability |
| Color Uniformity | RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. |
| Construction | |
| Cold Weather Starting | The minimum starting temperature is -40°C (-40°F) |
| Thermal Management | Superior heat sinking with external Air-Flow fins |
| Housing | Precision die-cast aluminum housing, lens frame and mounting arm |
| Reflector | Semi-specular, vacuum-metalized polycarbonate |
| Gaskets | High-temperature silicone gaskets |
| Finish | Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Installation | |
| Mounting | Heavy-duty 1/2" thread mounting arm with "O" ring seal & stainless steel screws |
| Optical | |
| NEMA Type | NEMA Beam Spread of 3H x 3V |
| Electrical | |
| Driver | Constant Current, 120-277V with 4kV surge protection, 120V: 0.23, 208V: 0.13A, 240V: 0.11A, 277V: 0.11A |
| THD | 8.72% at 120V, 5.7% at 277V |
| Power Factor | 92.5% at 120V, 99.7% at 277V |

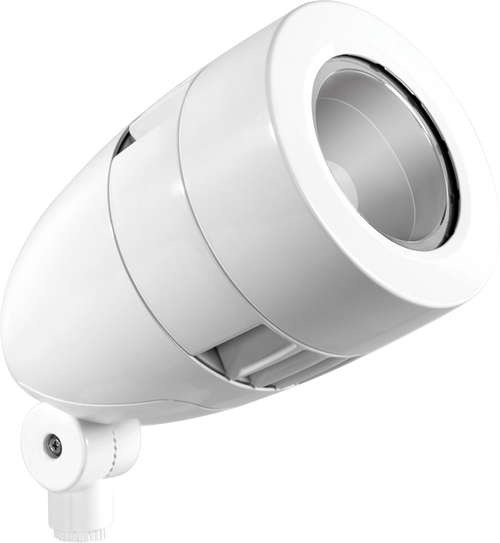

HNLED26YW
RAB Lighting
$445.00
- SKU:
- HNLED26YW
- UPC:
- 19813199917
- Availability:
- Usually ships within 1 week.
- Weight:
- 4.60 LBS
- Shipping:
- Calculated at Checkout
- sub-tech:
- LED
- Kelvin:
- 3000K
- color:
- White
- Spec Sheet:
- Spec Sheet
- Instructions:
- Instructions
- Watts:
- 26W
- Color Temp:
- 3000K (Warm)
- Lumens:
- 3,122 lm
- Efficacy:
- 114.8 lm/W
- Color Accuracy:
- 71 CRI
- L70:
- 100,000 Hours
- Type:
- Constant Current
- V120:
- 0.23A
- V208:
- 0.13A
- V240:
- 0.11A
- V277:
- 0.07A
- Input Watts:
- 27.2W
