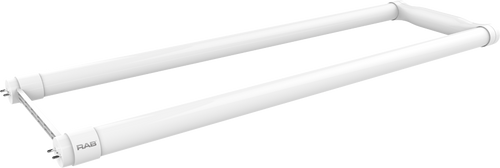

U6-18-850-SE-BYP

RAB Lighting

$21.93

(No reviews yet) Write a Review

sub-tech:

LED

Kelvin:

5000K

Spec Sheet:

Instructions:

Watts:

18W

Color Temp:

5000K (Daylight)

Lumens:

2,200 lm

Efficacy:

122.2 lm/W

Color Accuracy:

82 CRI

L70:

50,000 Hours

Input Voltage:

100-277V

Power Factor:

0.9

Current Stock:

Quantity:

Adding to cart… The item has been added

Performance
Product Type	Linear
Input Wattage	18W
Wattage Equivalency	32W Fluorescent
Lumens	2,200lm
Efficacy	122lm/W
L70 Lifespan	50,000 Hours
Dimming	Compatible with RAB specified 0-10V dimming system. Dimming capabilities were tested and verified on dimmable via an external accessory dimming system.
Construction
Material	Glass
Bulb Shape	U-Bent
Nominal Length	U6
Finish	Frosted
For Use Outdoors in Open Fixtures	No
LED Characteristics
Color Temperature	5000K Daylight
Color Accuracy (CRI)	82 CRI
Beam Angle	180°
Installation
Base Type	2G13
Installation Type	Type B, Single Ended wiring
Electrical
THD	<20%
Power Factor	0.9
Operating Temperature	-20°C to 45°C (-4°F to 113°F)
Input Voltage	100-277V
Operating Frequency	50/60Hz
Compliance
UL Recognized	Yes
UL Classified	Yes
NSF Listed	Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
Certification Model Number	U6-18-850-SE-BYP
California Energy Commission (CEC) Status	Lawful for Sales in California
Application	Suitable for damp locations and totally enclosed fixtures.
DLC Listed	This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: PUF6NFOS
