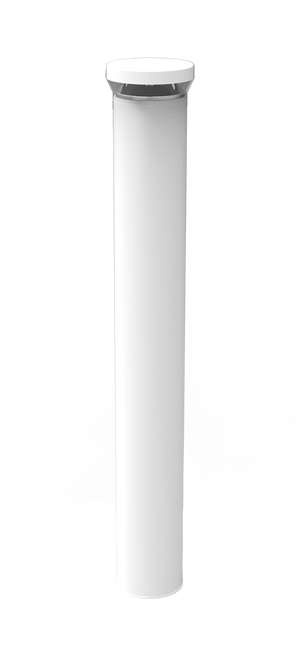

BLEDR24NW/D10 | RAB | LightingAndSupplies.com

BLEDR24NW/D10

RAB Lighting

$919.00
(No reviews yet) Write a Review
SKU:
BLEDR24NW/D10
UPC:
19813242583
Availability:
Usually ships within 1 week.
Weight:
22.00 LBS
Shipping:
Calculated at Checkout
sub-tech:
LED
Kelvin:
4000K
color:
White
Spec Sheet:
Spec Sheet
Instructions:
Instructions
Watts:
24W
Color Temp:
4000K (Neutral)
Lumens:
2,815 lm
Efficacy:
121.9 lm/W
Color Accuracy:
72 CRI
L70:
100,000 Hours
Type:
Constant Current
V120:
0.26A
V208:
0.18A
V240:
0.15A
V277:
0.14A
Input Watts:
23.1W
sub-tech:
LED
Kelvin:
4000K
color:
White
Spec Sheet:
Spec Sheet
Instructions:
Instructions
Watts:
24W
Color Temp:
4000K (Neutral)
Lumens:
2,815 lm
Efficacy:
121.9 lm/W
Color Accuracy:
72 CRI
L70:
100,000 Hours
Type:
Constant Current
V120:
0.26A
V208:
0.18A
V240:
0.15A
V277:
0.14A
Input Watts:
23.1W
Adding to cart… The item has been added
Compliance
UL ListedSuitable for wet locations
IESNA LM-79 & LM-80 TestingRAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
LED Characteristics
LEDs6W multi-chip, long-life LEDs
Color Consistency5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color StabilityLED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color UniformityRAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017
Performance
Lifespan100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Construction
Cold Weather StartingThe minimum starting temperature is -40°C (-40°F)
HousingDie-cast aluminum with extruded aluminum post
LensFrosted vandal resistant polycarbonate
ReflectorSpecular polycarbonate
GasketsHigh-temperature silicone gaskets seal out moisture gaskets seal out moisture
Anchor BoltAnchor Bolt Dimension is available here.
FinishOur environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
Green TechnologyMercury and UV free. RoHS-compliant components.
Installation
MountingFour (4) anchor bolts provided for concrete pad mounting. Internal base support has leveling screws.
Optical
BUG RatingB1 U1 G0
Electrical
DriverConstant Current, Class 2, 100-277V, 50/60 Hz, 4kV Surge Protection, 720mA, 120V: 0.26A, 208V: 0.18A, 240V: 0.15A, 277V: 0.14A
Dimming DriverDriver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD4.15% at 120V, 5.34% at 277V
Power Factor99.6% at 120V, 93.7% at 277V
