| Compliance | |
| UL Listed | Suitable for wet locations |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80. |
| DLC Listed | This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: PTNS5635 |
| Performance | |
| Lifespan | 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Wattage Equivalency | Equivalent to 70W Pulse Start Metal Halide |
| Construction | |
| IES Classification | The Type III distribution is ideal for roadway, general parking, and other area lighting applications where a larger pool of lighting is required. It is intended to be located near the side of the area, allowing the light to project outward and fill the area. |
| Housing | Precision die-cast aluminum housing, lens frame |
| Gaskets | High-temperature silicone |
| Effective Projected Area | EPA = 0.2 |
| Finish | Formulated for high durability and long-lasting color |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Maximum Ambient Temperature | Suitable for use in up to 55°C (131°F) |
| Cold Weather Starting | The minimum starting temperature is -40°C (-40°F) |
| LED Characteristics | |
| Lumen Maintenance | The LED will deliver 70% of its initial lumens at 100,000 hours of operation |
| Color Consistency | 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color |
| Color Stability | LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period |
| Color Uniformity | RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. |
| Electrical | |
| Driver | Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.11A, 208V: 0.07A, 240V: 0.06A, 277V 0.05A |
| Dimming Driver | Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| THD | 7.08% at 120V, 15.05% at 277V |
| Power Factor | 99.1% at 120V, 90.5% at 277V |
| Surge Protection | 4kV |
| Optical | |
| BUG Rating | B1 U0 G0 |

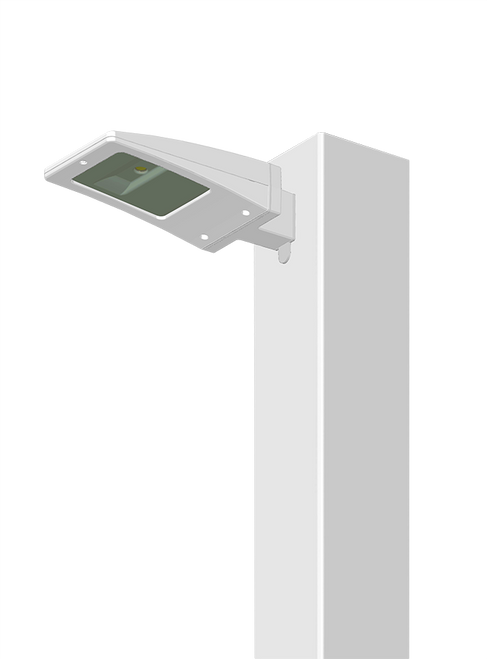

ALED13YW
RAB Lighting
$365.00
- SKU:
- ALED13YW
- UPC:
- 19813158761
- Availability:
- Usually ships within 1 week.
- Weight:
- 3.30 LBS
- Shipping:
- Calculated at Checkout
- sub-tech:
- LED
- Kelvin:
- 3000K
- Mounts:
- Arm
- Mounts:
- Pole
- Mounts:
- Square
- Spec Sheet:
- Spec Sheet
- Instructions:
- Instructions
- Watts:
- 13W
- Color Temp:
- 3000K (Warm)
- Lumens:
- 1,665 lm
- Efficacy:
- 113 lm/W
- Color Accuracy:
- 71 CRI
- L70:
- 100,000 Hours
- Type:
- Constant Current
- V120:
- 0.11A
- V208:
- 0.07A
- V240:
- 0.06A
- V277:
- 0.05A
- Input Watts:
- 14.7W
