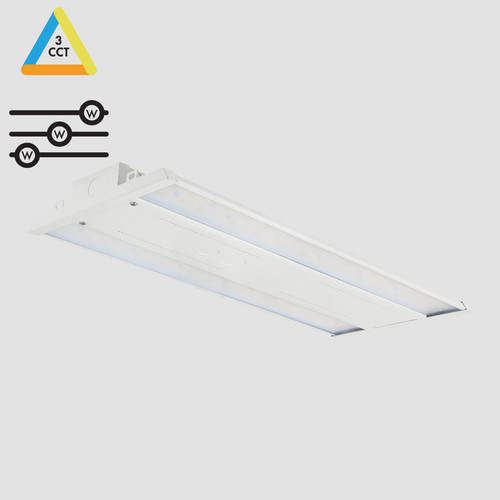

Jademar Lighting JLHBD-CS Series CCT Selectable Linear High Bay
JLHBD-CS Series
JLHBD-CS Series
CCT Selectable Linear High Bay
Product Description
The JLHBD-CS Series is designed to provide diffused glare free ambient specification lighting for warehouse, High Bay retail, manufacturing and other interior lighting applications.
The JLHBD series features CCT Selectable switch, continuous 0-10V dimming standard and optical design, programmable motion sensor control. The factory installed emergency battery backup system features field-selectable variable wattage settings for system design flexibility and maximum egress safety.
Product Features
Construction and Materials
- Aluminum Alloy Housing and Polycarbonate Diffused Lens
- Chain/Hook Pendant Mount Kit
Optical System
- 105¡ Light Distribution
Electrical System
- Input Power: 130W/170W/255W/300W/400W
- Input Voltage: 120-277VAC or 277-480VAC
- Efficacy: 136 lm/W on average
- Power Factor: >0.98
- CRI: >80
- Operating Temp:-22¡F to 113¡F (-30¡C to 45¡C)
- Total Harmonic Distortion: 10%
- Integral Surge Protection: L/N-PE: 2kV, L-N: 2kV
Dimming and Controls
- 0-10V Continuous Dimming Standard
Certifications and Compliance
- UL Listed
- Ingress Protection: IP20 Suitable for Damp Locations
- RoHS compliant
- Meets FCC Part 15, Subpart B, Class A limits for conducted and radiated Emissions
Lifetime Based on TM21: L70 ³ 181,000 Hrs / L80 ³ 132,000 Hrs / L90 ³ 101,000 Hrs
Built-In JACS Bluetooth Mesh Networked Lighting Control
- Apps available in iOS and Android App Stores
- Easy to configure lighting fixtures
- Scheduling
- Troubleshooting
- Zone configurations
- Scene management
- High-end trimming
Wireless Bluetooth Lighting Control System
