| Compliance | |
| UL Listed | Suitable for wet locations |
| IP Rating | Ingress protection rating of IP66 for dust and water |
| Title 24 Compliant | An IVEPARK edgelit garage fixture with a WS2 control option can be used to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,c) |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80. |
| LED Characteristics | |
| LEDs | Long-life, high-efficacy, surface-mount LEDs |
| Color Stability | LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period |
| Color Uniformity | RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. |
| Performance | |
| Lifespan | Up to 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Wattage Equivalency | Equivalent to 100W Metal Halide |
| Construction | |
| Cold Weather Starting | The minimum starting temperature is -20°C (-4°F) |
| Maximum Ambient Temperature | Suitable for use in up to 40°C (104°F) |
| Lens | Diffused Polymethyl Methacrylate (PMMA) |
| Finish | Formulated for high durability and long-lasting color |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Installation | |
| Mounting | Surface mount standard (accessories available for wall, pole and trunnion mount) |
| Electrical | |
| Driver | Class 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional, 120V: 0.24A, 208V: 0.14A, 240V: 0.12A, 277V: 0.11A |
| THD | 11.64% at 120V, 14.55% at 277V |
| Power Factor | 98.78% at 120V, 91.5% at 277V |

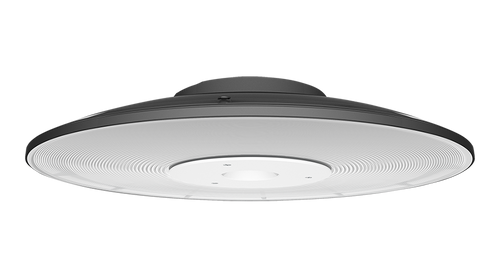

IVGT5-30L730ZU
RAB Lighting
$470.00
- SKU:
- IVGT5-30L730ZU
- UPC:
- 19813709062
- Availability:
- Usually ships within 1 week.
- Weight:
- 7.00 LBS
- Shipping:
- Calculated at Checkout
- voltage:
- 277v
- sub-tech:
- LED
- Kelvin:
- 3000K
- Spec Sheet:
- Spec Sheet
- Instructions:
- Instructions
- Watts:
- 28W
- Color Temp:
- 3000K (Warm)
- Lumens:
- 3,789 lm
- Efficacy:
- 133.9 lm/W
- Color Accuracy:
- 71 CRI
- L70:
- 100,000 Hours
- Type:
- Constant Current
- V120:
- 0.24A
- V208:
- 0.14A
- V240:
- 0.12A
- V277:
- 0.11A
- Input Watts:
- 28.3W
