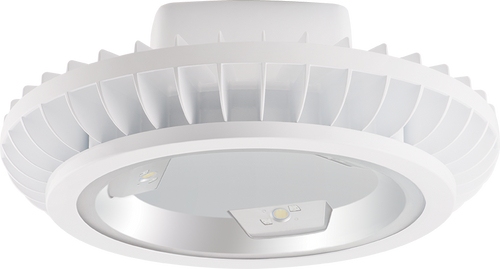

BAYLED104YW/BL

RAB Lighting

$950.00

(No reviews yet) Write a Review

SKU:: BAYLED104YW/BL
UPC:: 19813250359
Availability:: Usually ships within 1 week.
Weight:: 27.30 LBS
Shipping:: Calculated at Checkout
sub-tech:: LED
Kelvin:: 3000K
Mounts:: Pendant
color:: White
Spec Sheet:: Spec Sheet
Instructions:: Instructions
Watts:: 104W
Color Temp:: 3000K (Warm)
Lumens:: 14,773 lm
Efficacy:: 121.2 lm/W
Color Accuracy:: 72 CRI
L70:: 100,000 Hours
Type:: Constant Current
V120:: 1.03A
V208:: 0.65A
V240:: 0.56A
V277:: 0.49A
Input Watts:: 121.9W

sub-tech:

LED

Kelvin:

3000K

Mounts:

Pendant

color:

White

Spec Sheet:

Spec Sheet

Instructions:

Instructions

Watts:

104W

Color Temp:

3000K (Warm)

Lumens:

14,773 lm

Efficacy:

121.2 lm/W

Color Accuracy:

72 CRI

L70:

100,000 Hours

Type:

Constant Current

V120:

1.03A

V208:

0.65A

V240:

0.56A

V277:

0.49A

Input Watts:

121.9W

Current Stock:

Quantity:

Adding to cart… The item has been added

Description

Compliance
UL Listed	Suitable for damp locations with cord and hook. Suitable for wet locations with 3/4" pendant stem.
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed	This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: PWZF0IRS
LED Characteristics
LEDs	Multi-chip, high-output, long-life LEDs
Color Consistency	3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability	LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity	RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan	100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency	Replaces 320W Metal Halide
Construction
Ambient Temperature	Suitable for use in up to 55°C (131°F)
Thermal Management	Superior heat sinking with external Air-Flow fins
Housing	Precision die-cast aluminum housing and door frame with 3-foot 600V power cord
Lens	Tempered glass
Reflector	Specular vacuum metallized polycarbonate
Gaskets	High-temperature silicone
Finish	Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
Green Technology	Mercury and UV free. RoHS-compliant components.
Installation
Recommended Mounting Height	30 ft
Electrical
Drivers	Constant Current, 800mA, Class 2 with 6 kV surge protection, 100-277VAC, 50/60 Hz
THD	9.8% at 120V, 10.04% at 277V
Power Factor	99.3% at 120V, 93.6% at 277V
