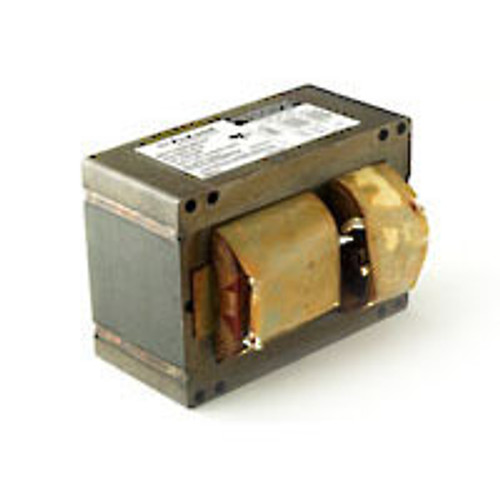

Halco Lighting Technologies S66/200CWA/4T/K 55118 200W LU S66 4T Kit

Halco Product Specifications:
ANSI Code 1: S66
Applications: Roadway, Parking lot, Retail, Security, Street, Wall Wash
Ballast Type: High Pressure Sodium
Brand: ProLume
CSA: N
Capacitance (mfd): 28
Capacitor - Minimum Voltage: 250
Capacitor Diameter (In): 1.78
Capacitor Height (In): 4.61
Capacitor Included: Y
Case Height: 4.25
Case Length (In): 4.75
Case Width (In): 1.22
Circle E: N
Circuit Type: CWA
Dimmable: N
ETL: N
Fuse Rating-120V (Amps): 6
Fuse Rating-208V (Amps): 4
Fuse Rating-240V (Amps): 3
Fuse Rating-277V (Amps): 3
HTS code: 8504100000
Ignitor: IGN/HPS2
Ignitor Included: Y
Included-mounting bracket: Y
Inner UPC: 807154551187
Input Frequency (Hz): 60
Input Short Circuit Current-120V (Amps): 0.8-1.6
Input Short Circuit Current-208V (Amps): 0.5-1.5
Input Short Circuit Current-240V (Amps): 0.4-1.2
Input Short Circuit Current-277V (Amps): 0.3-0.9
Input Volts (V): 120/208/240/277
Insulation System: Class N, 200?C
Lamp Type: HID Ballast
Lamp Wattage: 200
Lead Length - HID: 12
Markets: Commercial, Industrial
Maximum Case Temperature (F): 100
Minimum Start Temperature (F / C): -40 / -40
Nominal Open Circuit Volts: 178
Number of Lamps: 1
Open Circuit Current- 120V (Amps): 1.0
Open Circuit Current- 208V (Amps): 0.6
Open Circuit Current- 240V (Amps): 0.5
Open Circuit Current- 277V (Amps): 0.4
Operating Current-120V (Amps): 2.1
Operating Current-208V (Amps): 1.2
Operating Current-240V (Amps): 1.1
Operating Current-277V (Amps): 0.9
Primary Lamp: LU200
Product Code: S66/200CWA/4T/K
Product Description: 200W LU S66 4T KIT
Product Number: 55118
RoHS Compliant: Y
SS BUY PKG: 20
Secondary Short Circuit Current - 120V (Amps): 2.4-3.6
Secondary Short Circuit Current - 208V (Amps): 2.4-3.6
Secondary Short Circuit Current - 240V (Amps): 2.4-3.6
Secondary Short Circuit Current - 277V (Amps): 2.4-3.6
Specification Sheet:
Start Type: Standard
Starting Current - 120V (Amps): 1.6
Starting Current - 208V (Amps): 1.0
Starting Current - 240V (Amps): 0.8
Starting Current - 277V (Amps): 0.7
TITLE20 Y/N: Y
UL: Y
UL Bench Top Rise Code: A/A/A/A
UNSPSC: 39101902
Warning 1: Install in accordance with National Electrical Code
Warning 2: Ground Ballast Core and Metallic Capacitor Case
Warranty (Yrs): 2
Wattage (W): 240
Weight (lbs): 9.21
Weight - Total Kit (lbs): 9.21
cUL: Y
