| Compliance | |
| UL Listed | Suitable for wet locations |
| IP Rating | Ingress protection rating of IP66 for dust and water |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80. |
| DLC Listed | This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: PYK38B8B |
| Performance | |
| Lifespan | 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Electrical | |
| Driver | Driver: Constant Current, Class 2, 480V, 50/60 Hz, 6kv Surge Protection, 480V: 0.60A |
| Dimming Driver | Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| THD | 11.33% at 480V |
| Power Factor | 88.7% at 480V |
| LED Characteristics | |
| LEDs | High-output, long-life LEDs |
| Color Consistency | 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color |
| Color Stability | LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period |
| Color Uniformity | RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. |
| Construction | |
| Cold Weather Starting | The minimum starting temperature is -40°C (-40°F) |
| Maximum Ambient Temperature | Suitable for use in up to 40°C (104°F) |
| Thermal Management | Superior heat sinking with integrated air-flow fins |
| Housing | Precision die-cast aluminum housing and door frame |
| Lens | Prismatic polycarbonate lens |
| Reflector | Semi-specular anodized aluminum with ultra-white, 97% reflective optics |
| Gaskets | High-temperature silicone |
| Finish | Formulated for high durability and long-lasting color |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Installation | |
| Mounting | Pendant provided by others. Threads are 1/2 inch NPS. Stem insertion depth not to exceed 5/8 inch. Lock screw provided on fixture. |
| Optical | |
| BUG Rating | B2 U3 G1 |

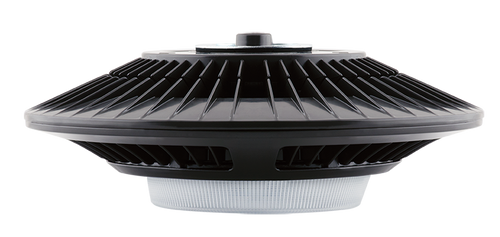

GPLED26N/480/D10
RAB Lighting
$813.00
- SKU:
- GPLED26N/480/D10
- UPC:
- 19813307565
- Availability:
- Usually ships within 1 week.
- Weight:
- 18.30 LBS
- Shipping:
- Calculated at Checkout
- voltage:
- 480v
- sub-tech:
- LED
- Kelvin:
- 4000K
- Mounts:
- Pendant
- Spec Sheet:
- Spec Sheet
- Instructions:
- Instructions
- Watts:
- 26W
- Color Temp:
- 4000K (Neutral)
- Lumens:
- 3,146 lm
- Efficacy:
- 123.4 lm/W
- Color Accuracy:
- 71 CRI
- L70:
- 100,000 Hours
- Type:
- Constant Current
- Input Watts:
- 25.5W
