Key Features:
Selectable CCT and Wattage
Choose your CCT and Wattage upon installation; great for SKU reduction and job site flexibility.
Slim Profile

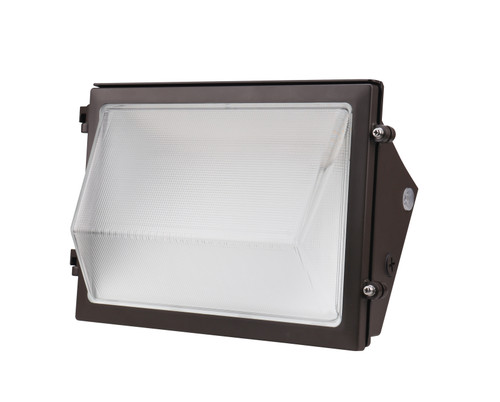

Large enough to cover the opening of a traditional wallpack, but the slim design gives this basic wallpack a more modern look.
Integrated Photocell
Photocell can be moved to another knockout or disabled.
Installation
4 - 1/2in Knockouts, internal level, hinged door and can be mounted with or without Junction Box.
Highlights:
- Slim profile wallpack suitable for many applications
- 4 - 1/2in knockouts ensures easy installation
- Wall mount with or without junction box
- Integrated photocell for dusk-to-dawn operation; can be relocated to top or opposite side
- Internal level simplifies installation without the need for additional tools
- Hinged removable door housing makes installation easier
- Glass lens
- PowerSet feature allows for multiple lumen stops out of the box
- FieldCCeT features provides multiple color temperature settings in one fixture
Certifications:
- UL Listed for US & Canada
- RoHS Compliant
- FCC Compliant
- ICES-005 Compliant
- IP65 Rated
- DesignLights Consortium Premium Qualified - meets the requirements for the highest DLC qualification for efficacy and lumen maintenance
Thermal:
- -40Deg. F to 122Deg. F (-40Deg. C to 50Deg. C) ambient operating temperature
- -13Deg. F to 122Deg. F (-25Deg. C to 50Deg. C) ambient operating temperature with photocell
Construction:
- Bronze powder coated, die-cast aluminum housing
- Glass Lens
Applications:
- Industrial Parks
- Loading Docks
- Utility Sheds
- Entryways
- Walkways
- Storage Areas
- Security
- Perimeter Lighting
Specification:
- Voltage: 120-277VAC
- Lumens (lm): 16,800 / 14,000 / 11,200 lm
- Wattage: 120/100/80W
- Efficacy (lm/W): 135 lm/W
- CCT (K): 3000K / 4000K / 5000K
- CRI: 80+
- Dimming: 0-10
- Replacement for: Up to 400W HID
- DLC Version: DLC Premium
- T20 Status: Exempt
- IP Rating: IP65
- Wet/Damp/Dry Location: Wet
- Dimensions (L x W x H): W: 13 13/16in (351mm), H: 8 13/16in (224mm), D: 4 9/16in (116mm)
- Lens Material New: Tempered Glass
- Ambient Temp Range: -40F to 122F (-40C to 50C)
- Driver Surge Protection (kV) new: L/N-PE: 6kV, L-N: 4kV
- General Warranty: 5 Years
5 Years
