| Voltage | 120-277VAC |
| Lumens (lm) | 36,000 lm / 30,000 lm / 27,000 lm |
| Wattage | 240W / 200W / 180W |
| Efficacy (lm/W) | 150 lm/W |
| CCT | 3500/4000/5000 |
| CRI | 80+ |
| Dimming | 0-10 |
| Replacement For/Equivalent | Up to 750W HID |
| DLC Version | DLC Premium |
| T20 Status | Exempt |
| IP Rating | IP65 |
| Wet/Damp/Dry Location | Wet |
| Dimensions (L x W x H) | Ø: 12 13/16" (325 mm), H: 6 1/2" (165 mm) |
| Housing Color | White |
| Lens Material | Polycarbonate (PC) |
| Operating Temp Range (°F/°C) | -40F to 122F (-40C to 50C) |
| Driver Surge Protection (kV) | L/N-PE: 6kV, L-N: 6kV |
| Auxiliary Output | Yes (12V) |
| Brand | EiKO |

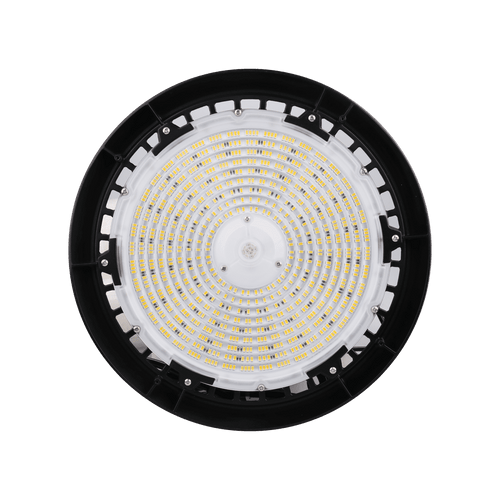

BAYE3 Round High Bay, PowerSET 240/200/180W, FieldCCeT 3500/4000/5000K, 120-277V, 0-10V Dimming, White | BAYE3-PS240-FCCT-U-WH | 13166 | EiKO
EiKO
$118.13
(No reviews yet)
Write a Review
Write a Review
EiKO
BAYE3 Round High Bay, PowerSET 240/200/180W, FieldCCeT 3500/4000/5000K, 120-277V, 0-10V Dimming, White | BAYE3-PS240-FCCT-U-WH | 13166 | EiKO
- SKU:
- BAYE3-PS240-FCCT-U-WH
- UPC:
- 031293131669
- Availability:
- Usually ships within 1 week
- Weight:
- 8.14 LBS
- Minimum Purchase:
- 1 unit
- Shipping:
- Calculated at Checkout
- Spec Sheet:
- Spec Sheet
- Instruction Sheet:
- Instruction Sheet
- Sell Sheet:
- Sell Sheet
- Lens Material:
- Polycarbonate (PC)
- Lumens:
- 36,000 lm / 30,000 lm / 27,000 lm
- Efficacy:
- 150 lm/W
- Max Wattage:
- 240W / 200W / 180W
- CCT:
- 3500/4000/5000
- CRI:
- 80+
- Rated Life:
- 50,000
- Beam Angle:
- 90°
- Input Voltage:
- 120-277VAC
- Output Voltage:
- 180-260VDC
- Dimmable:
- 0-10
- Order Code:
- 13166
