| Compliance | |
| UL Listed | Suitable for damp locations |
| CCEA Compliant | Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80. |
| Trade Agreements Act Compliant | This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act |
| DLC Listed | This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: PFVTCQJ0 |
| Performance | |
| Lifespan | 60,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Wattage Equivalency | Equivalent to (4)F32T8 or (4)F28T5 |
| Construction | |
| Maximum Ambient Temperature | Suitable for use in up to -30°C (-22°F) to 50°C(122°F) |
| IC Rated | Suitable for insulated ceilings |
| Lens | Frosted polystyrene |
| Housing | Lightweight aluminum housing, steel pan and junction box |
| Installation | Standard integral T-bar clips secure the fixture to T-bars and prevent T-system separation |
| Finish | Formulated for high durability and long-lasting color |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| LED Characteristics | |
| LEDs | Long-life, high-efficacy, surface-mount LEDs |
| Electrical | |
| Driver | Constant Current, Class 2, 50/60 Hz, 120-277V, 120V: 0.25A, 208V: 0.20A, 240V: 0.13A, 277V: 0.12A |
| Dimming Driver | Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| THD | 7.82% at 120V, 9.07% at 277V |
| Power Factor | 99% at 120V, 91.5% at 277V |
| Battery Backup | Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V. |
| Battery Backup Light Loss Factor | 0.43 |
| Installation | |
| Mounting | Recessed ceiling |

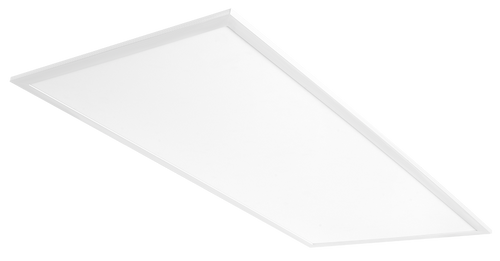

EZPAN2X4-30YN/D10/E2
RAB Lighting
$263.00
- SKU:
- EZPAN2X4-30YN/D10/E2
- UPC:
- 19813680705
- Availability:
- Usually ships within 1 week.
- Weight:
- 19.00 LBS
- Shipping:
- Calculated at Checkout
- voltage:
- 277v
- sub-tech:
- LED
- Spec Sheet:
- Spec Sheet
- Instructions:
- Instructions
- Watts:
- 30W
- Color Temp:
- 3500K (Warm Neutral)
- Lumens:
- 3,740 lm
- Efficacy:
- 118.5
- Color Accuracy:
- 84 CRI
- L70:
- 60,000 Hours
- Type:
- Constant Current
- V120:
- 0.25A
- V208:
- 0.20A
- V240:
- 0.13A
- V277:
- 0.12A
- Input Watts:
- 31.6W
