Compliance |
UL Listed | Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground. |
IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80. |
LED Characteristics |
LEDs | Long-life, high-efficiency, surface-mount LEDs |
Color Consistency | 5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color |
Color Stability | LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period |
Color Uniformity | RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017 |
Performance |
Lifespan | 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
Wattage Equivalency | Equivalent to 70W Metal Halide |
Optical |
BUG Rating | B2 U3 G2 |
Construction |
Cold Weather Starting | The minimum starting temperature is -40°C (-40°F) |

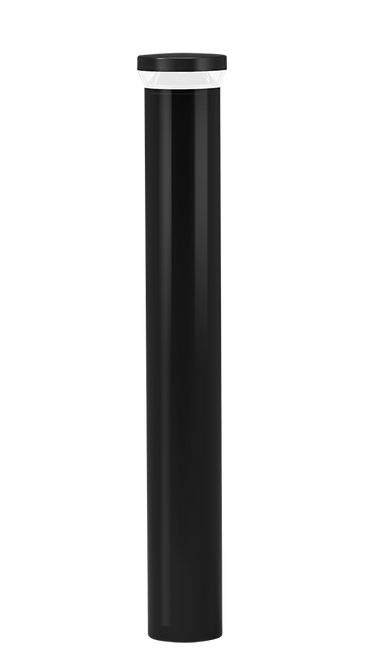

Housing | Die-cast aluminum with extruded aluminum post |
Lens | Frosted vandal resistant polycarbonate |
Reflector | Vacuum-metalized polycarbonate |
Gaskets | High-temperature silicone gaskets seal out moisture gaskets seal out moisture |
Anchor Bolt | Anchor Bolt Dimension is available here. |
Finish | Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color |
Green Technology | Mercury and UV free. RoHS-compliant components. |
Installation |
Mounting | Four (4) anchor bolts provided for concrete pad mounting. Internal base support has leveling screws. |
Electrical |
Driver | Constant Current, Class 2, 100-277V, 50/60 Hz, 4kV Surge Protection, 720mA, 120V: 0.26A, 208V: 0.18A, 240V: 0.15A, 277V: 0.14A |
Dimming Driver | Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
THD | 7.65% at 480V |
Power Factor | 85.1% at 480V |
