| Compliance | |
| UL Listed | Suitable for wet locations |
| IP Rating | Ingress protection rating of IP66 for dust and water |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80. |
| DLC Listed | This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: PTFG3H1K |
| Electrical | |
| Drivers | Constant Current, Class 2 with 6kV surge protection, 480VAC, 50/60 Hz, 480V: 0.17A |
| Dimming Driver | Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. See dimmer compatibility guide here. |
| THD | 4.31% at 480V |
| Power Factor | 94.8% at 480V |
| LED Characteristics | |
| LEDs | 6x13W high-output, long-life LEDs |
| Color Consistency | 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color |
| Color Stability | LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period |
| Color Uniformity | RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017. |
| Performance | |
| Lifespan | 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
| Wattage Equivalency | Equivalent to 250W Metal Halide |
| Construction | |
| Cold Weather Starting | The minimum starting temperature is -40°C (-40°F) |
| Maximum Ambient Temperature | Suitable for use in up to 40°C (104°F) |
| Effective Projected Area | EPA = 1.2 |
| Thermal Management | Superior thermal management with external air-flow fins |
| Housing | Precision die-cast aluminum, Type V distribution |
| Support Arms | Extruded aluminum |
| Lens | Clear tempered glass lens |
| Reflector | Specular vacuum-metallized polycarbonate, Type V distribution |
| Gaskets | High-temperature silicone |
| Finish | Formulated for high durability and long-lasting color |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Optical | |
| BUG Rating | B3 U0 G2 |

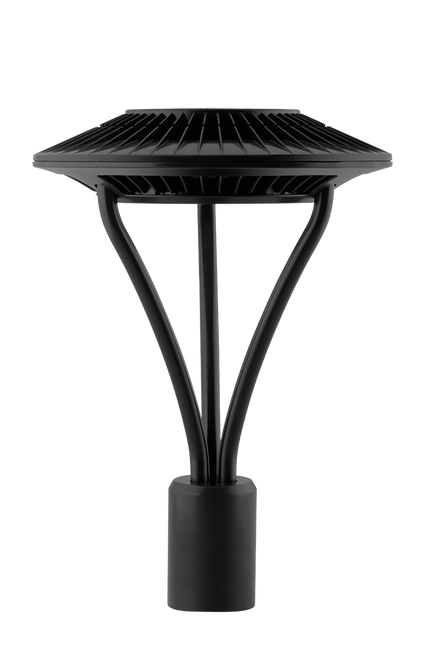

ALED5T78NK/480/D10
RAB Lighting
$868.00
- SKU:
- ALED5T78NK/480/D10
- UPC:
- 19813704999
- Availability:
- Usually ships within 1 week.
- Weight:
- 21.80 LBS
- Shipping:
- Calculated at Checkout
- voltage:
- 480v
- sub-tech:
- LED
- Kelvin:
- 4000K
- Mounts:
- Post Top
- color:
- Black
- Spec Sheet:
- Spec Sheet
- Instructions:
- Instructions
- Watts:
- 78W
- Color Temp:
- 4000K (Neutral)
- Lumens:
- 10,251 lm
- Efficacy:
- 131.1 lm/W
- Color Accuracy:
- 70 CRI
- L70:
- 100,000 Hours
- Type:
- Constant Current
- Input Watts:
- 78.2W
