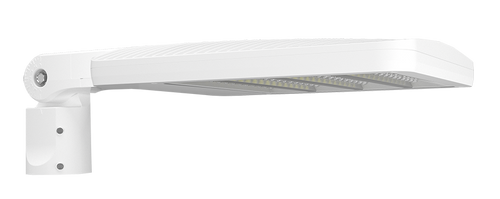

ALEDM5TSFYW/480/7PR

Description

Field Adjustability
Field Adjustable (Wattage)	Field adjustable light output in 3 discrete steps: Medium Housing: 150W/90W/78W (factory default 150W)
Compliance
UL Listed	Suitable for wet locations
IP Rating	Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Dark Sky Conformance	Dark Sky Approved in 3000K. Conforms to (allows for conformance to) the IDA's fully shielding requirement, emitting no light above 90 degrees (with the exclusion of incidental light reflecting from fixture housing, mounts, and pole).
Light Usage for Night Applications	This product has received the Design Lights Consortium's LUNA listing for 3000K Models. Designed to meet LUNA 5.1 requirements.LUNA Product Code: S-LDW34U
DLC Listed	This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: S-LDW34U
LED Characteristics
LEDs	Long-life, high-efficacy, discrete, surface-mount LEDs
Color Consistency	7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability	LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity	RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Electrical
Driver	78W: Constant Current, Class 2, 480V, 50/60 Hz, 480V:0.20A90W: Constant Current, Class 2, 480V, 50/60 Hz, 480V:0.23A150W: Constant Current, Non-Class 2, 480V, 50/60 Hz, 480V: 0.32A
Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD	6.73% at 480V
Power Factor	95.8% at 480V
Surge Protection	Line to Line: 10kVLine to Ground: 6kV
7-Pin Receptacle	ANSI C136.41 7-pin receptacle, compatible with wireless control systems
Performance
Lifespan	100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency	Equivalent to 400W Metal Halide
Construction
IES Classification	The Type V distribution produces light in a wide and uniform 360° pattern that is perfect for large outdoor areas such as parking lots, corporate parks and retail settings
Cold Weather Starting	The minimum starting temperature is -40°C (-40°F)
Ambient Temperature	Max Power Temp Rating: 40°C (104°F)Middle Power Temp Rating: 52°C (125°F)Low Power Temp Rating: 54°C (130°F)
Housing	Die-cast aluminum
Tilt Increment	Rotates in 5 degree increments
Lens	Polycarbonate lens
Reflector	Aluminum reflector with white polycarbonate
Vibration Rating	3G vibration rating per ANSI C136.31
Effective Projected Area	1 Fixture: 0.37 2 Fixtures at 90°: 0.59 2 Fixtures at 180°: 0.74 3 Fixtures at 90°: 0.96 4 Fixtures at 90°: 0.96
Gaskets	High-temperature silicone gaskets
Finish	Formulated for high durability and long-lasting color
Green Technology	Mercury and UV free. RoHS-compliant components.
Installation
Mounting	2 3/8" slipfitter mount with stainless steel hardware
Optical
Bug Rating	150W: B4 U0 G290W: B4 U0 G278W: B3 U0 G2

ALEDM5TSFYW/480/7PR
