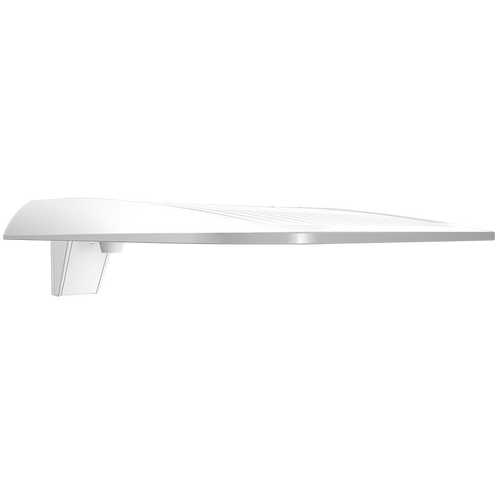

A34T4XLW

Description

Field Adjustability
Field Adjustable	Field Adjustable Light Output: 100W/80W/50W (factory default 80W)Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed	Suitable for wet locations
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating	Ingress protection rating of IP65 for dust and water
DLC Listed	This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.DLC Product Code: S-QGDBF4
Performance
Lifespan	100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency	340W: Replaces up to 1,000W Metal Halide (MH) or 1,000W High Pressure Sodium (HPS)270W: Replaces up to 1,000W Metal Halide (MH) or 750W High Pressure Sodium (HPS) 220W: Replaces up to 750W Metal Halide (MH) or 600W High Pressure Sodium (HPS)
Electrical
Driver	340W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 2.87A, 208V: 1.64A, 240V: 1.42A, 277V: 1.25A 270W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 2.33A, 208V: 1.30A, 240V: 1.12A, 277V: 1.04A 220W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 1.90A, 208V: 1.06A, 240V: 0.92A, 277V: 0.87A
Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Surge Protection	L-L: 6kV; L/N-G: 10kV10kV Surge suppressor in addition to surge built into the driver.
Photocell	Integrated photocell included with on/off switch
Construction
IES Classification	The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
Cold Weather Starting	The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature	Suitable for use in up to 40°C (104°F)
Lens	Clear polycarbonate lens
Housing	Die-cast aluminum housing, lens frame and mounting arm
Effective Projected Area	EPA = 0.4
Vibration Rating	2G
Finish	Formulated for high durability and long-lasting color
Green Technology	Includes recycled plastic and RoHS-compliant components.
LED Characteristics
LEDs	Long-life, high-efficiency, surface-mount LEDs
Color Uniformity	RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting	Universal mounting arm compatible for hole spacing patterns from 1" to 5 1/2" center to center. Round Pole Adaptor plate included as a standard. Easy slide and lock to mount fixture with ease. Round pole diameter must be >4" to mount fixtures at 90° orientation.
Optical
BUG Rating	340W: B4 U0 G5 270W: B4 U0 G4 220W: B4 U0 G4
