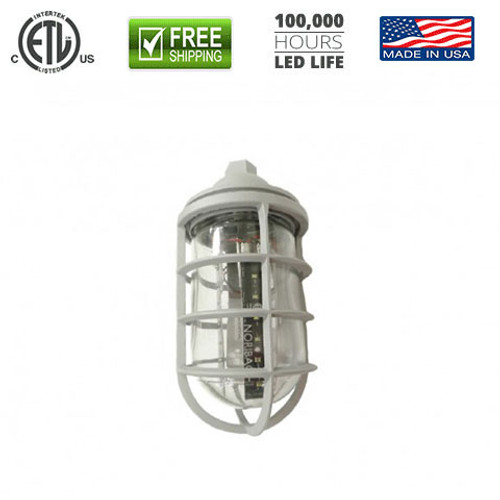

The Vaporproof.JM is a heavy-duty, energy-efficient LED lighting solution. This LED lighting fixture features aluminum housing with a tempered glass lens. Applications: Hazardous Environments, Storage Facilities, Recreational Areas and a variety of other indoor and outdoor lighting applications.
Performance Summary
Lumens Range: 3,576lm - 5,054lm Lumens Per Watt (Typical): 141 CRI: Minimum 70 CRI. Custom CRI available upon request. CCT (Typical): 3000K, 4000K, 5700K Manufactured in the U.S. with parts from U.S. and imported
Fixture Information
Housing: Grey Lens: Clear Glass Mounting: Ceiling Diffusion:
Specifications CSA Listing:
Wet Locations IP Rating: 65 Length: 11.5” Width: 5.13”
Electrical System Characteristics
Data Standard AC input: 120-277 VAC EMI filter: 47CFR, part 2, part 15 Power factor: .>9 Total harmonic distortion: <20% Surge protection: IEC/EN 61000-4-5 EMC test standard
Construction Heavy-
duty die-cast aluminum housing, screw-on guard, chromate conversion coating and textured grey powdercoat. Optics High brightness, high efficiency LEDs. Color temperature options include Cool White (5700K typical), Neutral White (4000K typical) Warm White (3000K typical) with minimum 70 CRI. Custom RGBW colors available. 120° beam angle standard. Optional 80° beam angle available. Manufacturing Manufactured in beautiful Harbor City, CA. ARRA Compliant. NAFTA Compliant. Test and burn-in of 100% of all luminaries before shipment. No less than 8-years experience in manufacturing LED-based products. Note Specifications subject to change without notice. Actual performance may differ as a result of end-user environment application. Actual wattage may differ by +/- 8%.
Electrical System Surge
protection meets 10KV/5KA per ANSI/IEEEC62.41. Driver meets maximum harmonic distortion (THD) of 20% and is ROHS compliant. Power Factor = > 0.9. Mounting Ceiling mounting available for this fixture. Ambient Temperature -40°C to +65°C (-40°F to + 149°F). Operating Characteristics (Typical @5700K CCT) LIGHT ENGINE DRIVE LUMENS (T5) INPUT POWER (WATTS) LUMENS PER WATT LIN-024-FIN A 3,576 35.96 99.45 LIN-024-FIN B 5,064 35.96 140.87 2 ELECTRICAL Testing Compliance UL 1598 Issued: 2008/09/17 Ed:3 Rev:2012/10/17 UL Standard for Safety Luminaires CSA C22.2#250.0 Issued: 2008/09/17 Ed:3 Luminaires; General Instruction No.1 2010/01/11, General Instruction No. 2 2012/10/17. (ANSI/UL 8750). UL Standard for Safety for Light Emitting Diode (LED) Equipment for use in Lighting Products - First Edition; Dated 2009/11/18. 101514278LAX-001 revised 27-Jun-2014. Controls Controls include 480V for up to 150W light engines (HV1) and 480V for 150W-299W light engines (HV2). 100-722V (SGR1) and 480V (SGR2) Surge Protectors. 0-10V (010V) and Step (STEP) dimming functionality. Emergency Backup Battery (EM) and Emergency Batter Backup, Cold (EMC). Driver Available in A (350mA) drive current and B drive current (525 mA). Highly reliable. Suitable for dry, damp and wet locations. Compliant to
